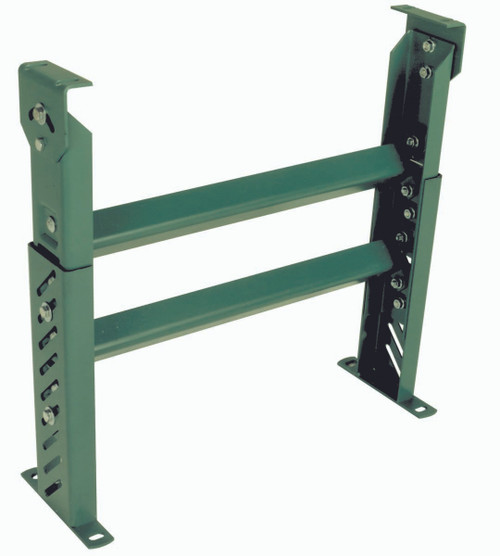

SM Medium Duty Conveyor Supports - 25” Between Frames - 10

SM-10-25

FOB: Our Arkansas Warehouse

$75.00 Minimum Order

Support your conveyor system with dependable strength using Roach Medium Duty Conveyor Supports, available at Material Flow. Built for durability and stability, these supports are designed to provide reliable elevation and structural support for conveyor systems in warehouses, manufacturing facilities, and distribution centers.

Engineered with 12-gauge inside and outside channel assemblies, these supports deliver long-lasting performance in demanding material handling environments. 10-gauge C-3 plates and cross braces provide additional reinforcement, helping maintain stability even under heavy loads.

Designed for 25" between frames (BF) conveyor systems, these supports offer a 1,500 lb. capacity and adjustable height ranges that allow you to configure your conveyor line to meet specific operational needs. Whether you're installing a new system or upgrading an existing one, Roach conveyor supports deliver the durability and flexibility required for efficient material flow.

Brand: Roach

Construction

• 12 gauge inside and outside channel assemblies

• C-3 plates made from 10 gauge steel

• 10 gauge cross braces

Width

• 25" between frames

Capacity

• 1,500 lbs.

Height Adjustment

• Minimal Height Range: 7-1/4" to 92-1/4"

• Maximum Height Range: 10-1/4" to 104-1/4"

Notes

• Weights shown in U.S. pounds

• Surcharges may apply
