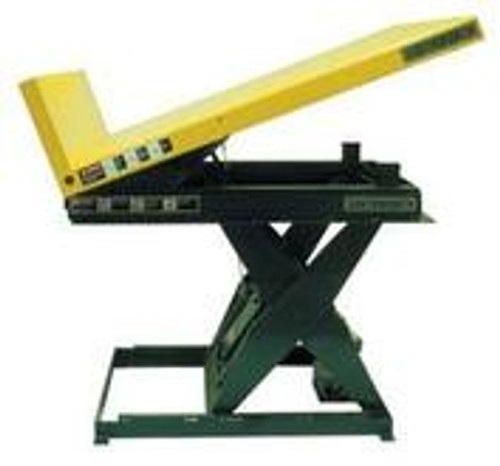

Southworth E-Z Reach Lift and Tilt Container Tilter

E-Z Reach Lift and Tilt Container Tilter - 5

Manufacturer: Southworth
$14,969.00
(No reviews yet) Write a Review
Condition:
New
grid__Platform Size:
42" x 42"
grid__Capacity:
4,000 lbs.
grid__Height Range:
11" to 39"
grid__Degree of Tilt:
30 degrees
grid__Weight:
1,300 lbs.

UTB4-30



FOB: Our Maine Warehouse

Southworth E-Z Reach Lift and Tilt Container Tilter

Take full control of your container positioning with the Southworth E-Z Reach Lift and Tilt, available at Material Flow. Designed for precision, safety, and stability, this advanced lift and tilt system allows operators to independently control lift height and tilt angle — delivering unmatched ergonomic efficiency.

At the core of this system is Southworth’s exclusive Universal Tilter Base (UTB). This innovative design automatically compensates for the shifting center of gravity as loads are tilted, ensuring superior stability throughout operation. The shorter, wider stance improves safety while maintaining a compact footprint — perfect for demanding warehouse and production environments.

The open frame top design allows the tilting hydraulics to retract within the frame, resulting in a lower collapsed height when fully lowered. Combined with contoured legs and torque tubes, this system delivers exceptional rigidity, minimal platform deflection, and long-term durability.

Built for tough industrial use, the E-Z Reach Lift and Tilt features heavy-duty hydraulic hoses rated at 600% above operating pressure and a pressure-compensated flow control valve preset to ANSI-compliant lowering speeds. When precision, reliability, and operator safety matter — this is the lift you want on your floor.

For oversized platform options or custom configurations, contact Material Flow today.

  • Manufacturer: Southworth

  • Standard Primary Voltage: 115/1/60

  • Exclusive Universal Tilter Base (UTB)

  • Independent lift and tilt control

  • Pressure compensated flow control valve with lockout

  • Preset 10 F.P.M. maximum lowering speed (ANSI compliant)

  • Contoured legs for added strength & lower collapsed height

  • Heavy-duty torque tubes to reduce twisting & deflection

  • Heavy-duty hydraulic hoses (600% burst strength over operating pressure)

  • Open frame top for lower full-down profile

  • Oversized platform sizes available in 6" increments (-OS models)

  • Surcharges may apply
