FOB: Our Wisconsin Warehouse

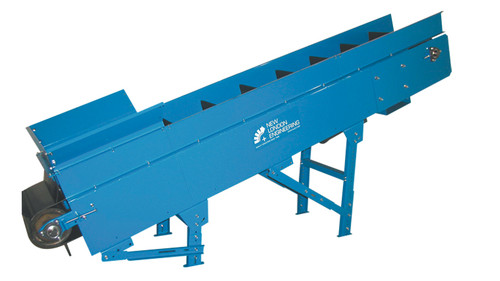

Take your material handling capabilities to the next level with the New London Engineering Model 505 Medium Duty Inclining Belt Conveyor, proudly offered by Material Flow. Engineered for performance in demanding industrial environments, this conveyor is the ideal solution for efficiently moving heavier, bulkier items up inclines without sacrificing stability or reliability.
Built with a rugged 13-inch deep steel frame and reinforced components, the Model 505 is designed to thrive under continuous, high-demand use. Whether you're transporting plastic parts, fasteners, stampings, or other loose components, the cleated belt system ensures materials stay securely in place from start to finish. The 3-inch high cleats combined with 6-inch side rails prevent rollback and spillage, giving you smooth, controlled product movement even on steeper inclines.
What sets this conveyor apart is its ability to balance durability with precision. The large rubber-lagged drive pulley enhances traction and belt performance, while grease-sealed bearings reduce maintenance requirements and extend operational life. With a standard speed of 60 feet per minute and a powerful 3/4 HP motor, the Model 505 delivers consistent throughput that keeps your workflow moving efficiently.
Versatility is another key advantage. With customizable widths ranging from 12 inches to 48 inches and lengths up to 25 feet in 6-inch increments, this conveyor can be tailored to meet the exact needs of your facility. Its two-piece bolt-together design simplifies installation and allows for easier integration into existing systems.
From manufacturing and assembly lines to parts processing and packaging operations, the New London Engineering 505 Inclining Belt Conveyor is built to handle the job—day in and day out. When you partner with Material Flow, you're not just purchasing equipment—you’re investing in long-term productivity, reliability, and performance.
- Built for heavy-duty, continuous industrial use
- Ideal for incline transport of loose, bulk materials
- Cleated belt design prevents product rollback and spillage
- Handles larger, heavier items with ease
- Durable steel frame ensures long service life
- Low-maintenance design with grease-sealed bearings
- Flexible sizing options for custom applications
Manufacturer: New London Engineering
Model: 505 Medium Duty Inclining Belt Conveyor
Dimensions & Capacity
- Widths: 12" – 48"
- Lengths: 5' – 25' (6" increments)
- Standard Length: 5' (Two-piece bolt-together design)
Performance
- Standard Speed: 60 FPM
- Motor: 3/4 HP, 230/460/3/60 TEFC
- Drive Configuration: Top mount, right side
Belt Specifications
- Material: Black PVC 120
- Cleats: 3" high on 12" centers
- Lacing: Clipper lacing
Pulley Details
- Drive Pulley: 8" diameter, crown face, rubber lagged (1-7/16")
- Infeed Pulley: 8" diameter crown face take-up (1-7/16")
Construction
- Frame: 13" deep, 10-gauge steel
- Bearings: Grease sealed for long life
- Included Features:
- 6" high side rails
- Bottom pan for added containment
Surcharges may apply.
