251S Heavy Duty 2.5" x 11 Ga. Steel Gravity Roller Conveyors 8" Roller Length - 9" Between Frame - 3

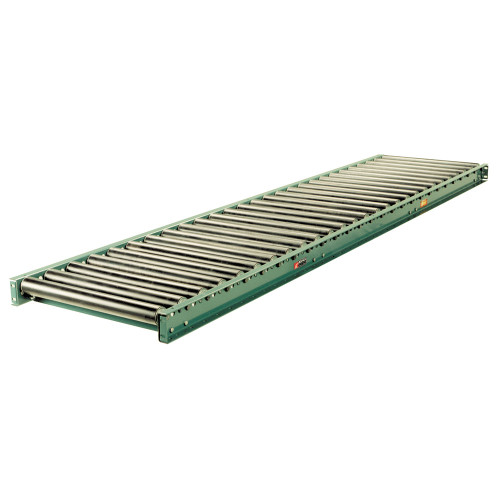

Roach 251S-9-6-H-10 Heavy Duty Gravity Conveyor | Material Flow

FOB: Our Arkansas Warehouse

Handle your heaviest loads with confidence using the Roach 251S Heavy Duty Gravity Roller Conveyor, available at Material Flow. Featuring rugged 2-1/2" diameter steel rollers made from 11-gauge tubing, each roller supports up to 540 lbs., making it ideal for demanding warehouse and industrial environments.

The conveyor frame is built from 7-gauge formed steel channel and handles up to 7,500 lbs. when supported at 5-foot centers. With 8" roller lengths and 9" between frames, this pre-engineered conveyor delivers long-lasting performance and easy adaptability. Spring-loaded axles, plain ball bearings, and butt-type couplings round out this efficient, heavy-duty design.

Note: Optional special lengths, widths, and height settings available. Surcharges may apply. Always use connector brackets with pop-out rollers when attaching to powered conveyors.

• Brand: Roach Conveyors

• Model: 251S

• Rollers: 2-1/2" dia. x 11 ga. steel tubing

• Roller Capacity: 540 lbs. per roller

• Roller Length: 8 inches

• Between Frame (BF): 9 inches

• Bearings: Zinc-plated plain ball bearings, grease packed

• Axles: 11/16" hex shaft, spring loaded

• Frames:

  • High set: 4" x 1-1/2" x 7 ga.

  • Low set: 5" x 1-1/2" x 7 ga.

• Frame Capacity:

  • 3,400 lbs. @ 10' centers

  • 7,500 lbs. @ 5' centers

• Couplings: Butt type

• Options: Special lengths, widths, and heights

• Surcharges: May apply

• Safety Note: Use pop-out rollers when connecting to power conveyors
