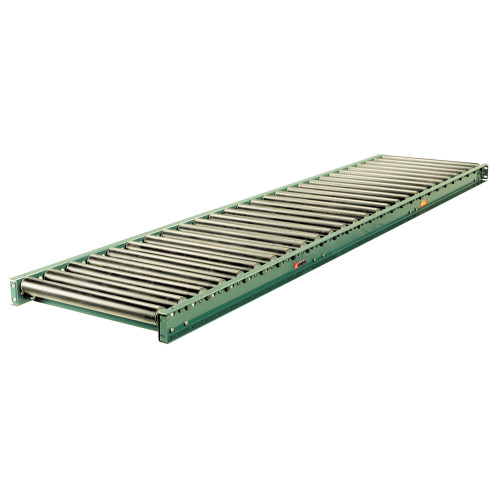

251S Heavy Duty 2.5" x 11 Ga. Steel Gravity Roller Conveyors 18" Roller Length - 19" Between Frame

FOB: Our Arkansas Warehouse

Boost your material handling efficiency with the Roach 251S Heavy Duty 2.5" x 11 Ga. Steel Gravity Roller Conveyor, engineered for strength and reliability. Available now from Material Flow, this rugged conveyor features 2.5" diameter, 11-gauge steel rollers spaced perfectly with an 18" roller length and 19" between frame. Built to handle up to 540 lbs. per roller, and up to 7500 lbs. per 10’ section with proper support, it’s the ideal solution for warehouses, distribution centers, and industrial operations. With precision ball bearings, spring-loaded axles, and customizable specs, this conveyor adapts to your exact workflow needs.

• Brand Name: Roach Conveyors

• Model: 251S

• Roller Diameter: 2.5"

• Roller Gauge: 11 ga steel tubing

• Roller Length: 18"

• Between Frame (BF): 19"

• Roller Capacity: 540 lbs. each

• Frame Material: Painted formed steel

• Frame Size (Set High): 4" x 1.5" x 7 ga

• Frame Size (Set Low): 5" x 1.5" x 7 ga

• Frame Capacity:

  • 3400 lbs. per 10' section (supports at 10' centers)

  • 7500 lbs. per 10' section (supports at 5' centers)

• Bearings: Plain ball bearings, zinc plated, grease packed

• Axles: 11/16" hex shaft, spring loaded

• Couplings: Butt type

• Options: Custom lengths, widths, and heights available

• Safety Note: To prevent pinch points that exist when gravity conveyors are permanently attached to power conveyors, use connector brackets with safety pop-out rollers.

• Note: Surcharges may apply

All of Roach's pre-engineered line can easily be adapted to special application needs. The basic unit has already been engineered and can often be shipped quickly.
