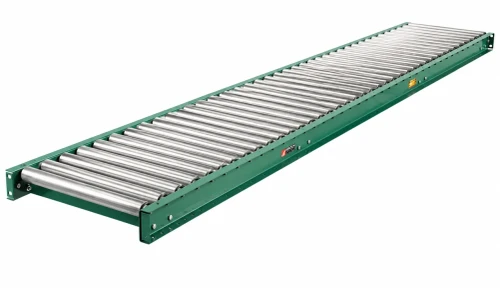

Roach Conveyor Roller Gravity Conveyor 22" Roller Length - 23" Between Frame
Keep cartons, containers and other compatible loads moving efficiently with the Roach Conveyor 196G Medium-Duty Galvanized Roller Gravity Conveyor from Material Flow. Featuring 22-inch rollers and a 23-inch between-frame width, this rugged straight-section gravity conveyor provides a dependable, non-powered solution for warehouses, distribution centers, shipping areas, production facilities and other material handling operations.
The 196G is equipped with 1.9-inch diameter, 16-gauge galvanized steel rollers featuring smooth swaged ends for durable everyday performance. Integral plain ball bearings are zinc plated and grease packed, helping provide dependable roller operation in demanding industrial environments.
Rugged formed-steel channel frames provide the structural support required for medium-duty conveying applications. Depending on the configuration, the conveyor can support 250 lbs. per roller or a maximum distributed live load of 1,300 lbs. per 10-foot section with supports at 10-foot centers. Installing supports at 5-foot centers increases the maximum distributed live load to 3,200 lbs.
Spring-loaded 7/16-inch hex axles and butt-type couplings provide a practical, durable conveyor configuration, while an optional structural steel channel frame is available for applications requiring an alternative frame design.
For a rugged gravity conveyor that combines galvanized steel rollers, substantial load capacity and reliable non-powered material movement, choose the Roach Conveyor 196G from Material Flow.
Brand: Roach Conveyor
Manufacturer: Roach Conveyors
Model: 196G
Product Type: Medium-Duty Galvanized Roller Gravity Conveyor
Section Type: Straight Sections
Roller Length: 22"
Between Frame Width: 23"
Roller Diameter: 1.9"
Roller Gauge: 16 Gauge
Roller Material: Galvanized Steel Tubing
Roller Ends: Smooth Swaged Ends
Bearings: Integral Plain Ball Bearings
Bearing Finish: Zinc Plated
Bearing Lubrication: Grease Packed
High-Set Frame: 3-1/2" x 1-1/2" x 10 Gauge Formed Steel Painted Channel
Low-Set Frame: 4-1/2" x 1-1/2" x 10 Gauge Formed Steel Painted Channel
Capacity Per Roller: 250 lbs.
Maximum Distributed Live Load at 10' Support Centers: 1,300 lbs. per 10' Section
Maximum Distributed Live Load at 5' Support Centers: 3,200 lbs.
Couplings: Butt Type
Axles: 7/16" Hex Shaft, Spring Loaded
Optional Frame: 4" Structural Steel Channel, 5.4 lbs.
Optional Frame Roller Position: 3/16" High; May Vary Due to Structural Tolerances
Conveyor Operation: Gravity / Non-Powered
Surcharges: May Apply
