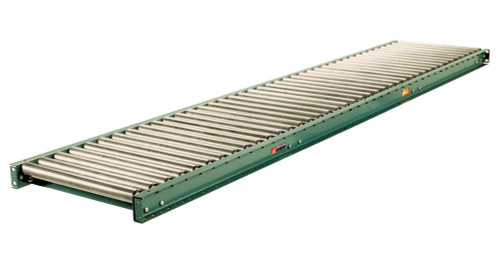

196G Medium Duty Galvanized Roller Gravity Conveyor 16" Roller Length - 17" Between Frame

FOB: Arkansas Warehouse

Streamline your material handling process with the Roach 196G Medium Duty Galvanized Roller Gravity Conveyor, designed for dependable performance in warehouse, distribution, and industrial environments. Built for efficiency, this gravity conveyor allows smooth product movement without the need for powered operation, reducing energy costs while improving workflow.

Featuring durable 1.9" diameter galvanized steel rollers made from 16-gauge tubing, this conveyor offers excellent corrosion resistance and long-lasting performance. The smooth swaged ends ensure consistent product flow, making it ideal for handling boxes, cartons, and packaged goods.

The robust formed steel frame provides superior strength and stability, with options for high or low set configurations to suit your application. Each roller supports up to 250 lbs., while the conveyor system can handle up to 1,300 lbs. per 10-foot section with supports at 10-foot centers—or up to 3,200 lbs. at 5-foot centers—making it a reliable choice for medium-duty applications.

Equipped with grease-packed, zinc-plated ball bearings, spring-loaded hex shaft axles, and secure butt-type couplings, this conveyor ensures smooth, low-maintenance operation. Optional structural steel frames are also available for enhanced durability in more demanding environments.

Built with Roach’s trusted engineering, the 196G gravity conveyor is a cost-effective, long-lasting solution for efficient material transport.

• Brand: Roach
• Model: 196G
• Type: Medium duty gravity roller conveyor
• Rollers: 1.9" dia. x 16 gauge galvanized steel tubing
• Roller Length: 16"
• Between Frame Width: 17"
• Bearings: Zinc plated, grease-packed ball bearings
• Frame Options:
  • 3-1/2" x 1-1/2" x 10 ga. (set high)
  • 4-1/2" x 1-1/2" x 10 ga. (set low)
• Capacity:
  • 250 lbs. per roller
  • 1,300 lbs. per 10' section (10' centers)
  • 3,200 lbs. per 10' section (5' centers)
• Axles: 7/16" hex shaft, spring loaded
• Couplings: Butt type
• Optional Frame: 4" structural steel channel
• Application: Warehouse, distribution, package handling
• Note: Surcharges may apply
