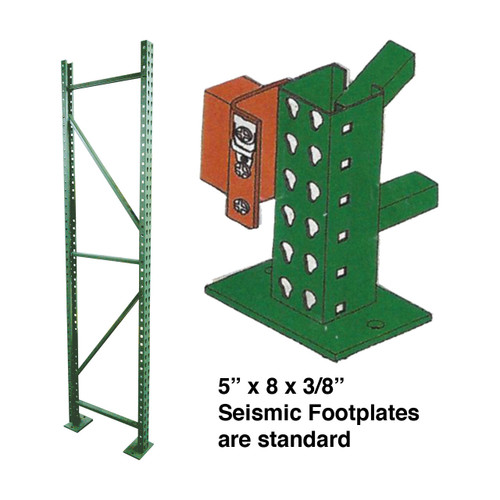

Teardrop 42 x 168 Storage Rack Upright Frames

FOB: Oregon Warehouse

Stock color: Vista Green

Maximize savings by combining beams and frames! Designed for customization, these frames are available in various sizes and can be tailored to your operation with custom height or depth options. The stock color is Vista Green, and quick shipment is available for common sizes. Featuring adjustable 2-inch centers and 5"x8"x3/8" seismic plates with four holes, this frame ensures durability and stability. Material Flow specializes in designing and building racking systems to meet your unique needs.

• Capacity: 24,000 lb
• Stock color: Vista Green
• Seismic plates: 5"x8"x3/8"
• Adjustable centers: 2"
• Available for quick shipment
• Note: Upright frame capacities are based on 42" maximum vertical beam spacing.

How to Choose Your Pallet Rack:

1. Frame Capacity: Calculate the total weight of all pallets per bay (excluding floor pallets).
2. Height: Measure the pallet, load, and beam height. Add 4" clearance, and ensure the top beam is at least 6" below the forklift's maximum lift height.
3. Depth: Pallets should overhang the frame by 3" on both sides. Deduct 6" from pallet depth (e.g., a 48" pallet requires a 42" frame).
4. Width: Add 3" clearance from frame and 4" between pallets. Ensure beams support pallet weight, and for add-ons, use only one additional frame with beams.
