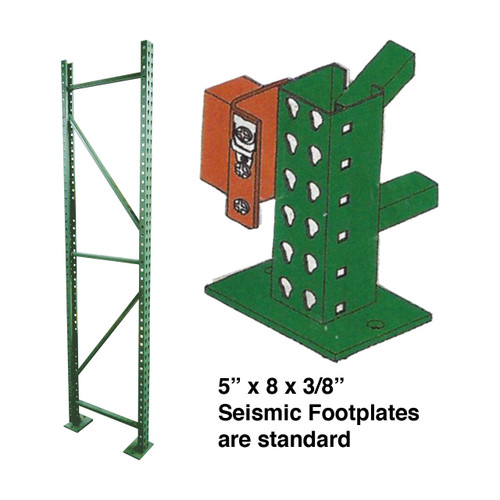

Teardrop 36 x 144 Storage Rack Upright Frames

FOB: Oregon Warehouse

The Teardrop 36x144 Storage Rack Upright Frames from Material Flow are engineered for durability and versatility in warehouse storage. These frames offer a high load capacity, with the option to choose between 18,000 lbs or 24,000 lbs capacities. The frames are easily adjustable on 2" centers, allowing you to customize your racking system according to your needs. With quick shipping from our Oregon warehouse and the ability to design custom racking solutions, these frames are perfect for optimizing your storage space. Many sizes available. Custom height or depth frames available.

• Dimensions: 36" D x 144" H
• Frame options: 3" x 1-5/8" (18,000 lbs capacity) or 3" x 3" (24,000 lbs capacity)
• Weight: 64 lbs (18,000 lbs capacity) / 80 lbs (24,000 lbs capacity)
• Includes 5"x8"x3/8" seismic plates with 4 holes
• Stock color: Vista Green
• Special freight rates on larger orders
• Surcharges May Apply

Guide to Selecting Your Pallet Rack

1. Frame Capacity: Calculate the total weight of all pallets per bay (excluding floor pallets).

2. Height: Measure total vertical height, including pallet, load, and beam height. Ensure 4" clearance between load top and beam above, with the top beam at least 6" lower than your forklift's max lifting height.

3. Depth: Pallets should overhang the frame by 3" front and back. Subtract 6" from the pallet depth to determine frame depth.

4. Width: Add 3" clearance from pallet to frame and 4" between pallets to find the correct beam length. Each beam pair must support the weight per level. Add-on sections need only one additional frame and beams.
