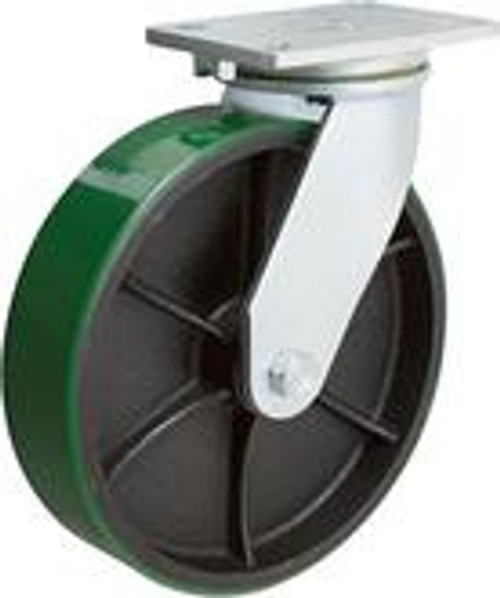

STP7500 Series Heavy Duty Drop Forged Swivel Casters
Write a Review
Material Flow
STP7500 Series Heavy Duty Drop Forged Swivel Casters
- SKU:
- STP7500 Series Heavy Duty Drop Forged Swivel Casters
- UPC:
- Condition:
- New
FOB: Oregon Warehouse
Lead time: 2-5 days
Tackle your toughest loads with confidence using the STP7500 Series Heavy Duty Drop Forged Swivel Casters from Material Flow. Designed for maximum durability, these casters are built from drop forged AISI 1045 steel and plated in bright zinc to resist wear in demanding environments.
The swivel mechanism features double ball bearing “deep-groove” coined and machined raceways for smooth, load-bearing performance. With a wide 3-1/2" fork spacing, 3/4" axle, and precision-engineered 3/8" steel legs, these casters are ideal for cargo containers, freight terminal trucks, textile carts, heavy-duty racks, and platform trucks. Zerk grease fittings make maintenance easy, while the bolt-and-nut kingpin adds long-term strength.
Trust Material Flow to keep your heavy-duty operations rolling smoothly!
Finish: Bright zinc plating
Top Plate: 13/32" thick AISI 1045 drop forged steel
Swivel: Coined deep-groove double ball bearing, machined thrust raceway
Fork Spacing: 3-1/2"
Legs: 3/8" thick steel, machine-welded to resist bending
Kingpin: 3/4" diameter bolt and nut
Grease Fittings: Zerk fitting in swivel section
Axle: 3/4" diameter with lock nut
Note: Surcharges may apply
Applications:
-
Cargo Containers
-
Freight Terminal Trucks
-
Textile Carts
-
Storage Racks
-
Trash Containers
-
Heavy-Duty Platform Trucks
| Model No. | Model No. | Wheel Diameter | Wheel Type | Wheel Bearing | Load Capacity | Overall Height | Swivel Radius | Fastening Type | Fastening Size | Tread Width | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46871 | STP7560-01-PHN | 6" | Phenolic | Roller | 2000 lbs. | 7-5/8" | 5-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$119.07
|
|
| 47001 | STP7560-01-RCI | 6" | Rubber / Cast Iron | Roller | 750 lbs. | 7-5/8" | 5-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$114.07
|
|
| 47815 | STP7560-01-PCI | 6" | Polyurethane / Cast Iron | Roller | 2000 lbs. | 7-5/8" | 5-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$122.07
|
|
| 48271 | STP7580-01-STL | 8" | Steel | Roller | 2500 lbs. | 10-1/8" | 6-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$128.07
|
|
| 48405 | STP7560-01-STL | 6" | Steel | Roller | 2500 lbs. | 7-5/8" | 5-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$121.07
|
|
| 48429 | STP7580-01-RCI | 8" | Rubber / Cast Iron | Roller | 900 lbs. | 10-1/8" | 6-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$120.07
|
|
| 48473 | STP7580-01-PHN | 8" | Phenolic | Roller | 2500 lbs. | 10-1/8" | 6-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$127.07
|
|
| 48596 | STP7560-01-SDI | 6" | Ductile Iron | Roller | 4800 lbs. | 7-5/8" | 5-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$143.07
|
|
| 48619 | STP7580-01-PCI | 8" | Polyurethane / Cast Iron | Roller | 2500 lbs. | 10-1/8" | 6-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$133.07
|
|
| 49359 | STP7510-01-SDI | 10" | Ductile Iron | Roller | 5400 lbs | 11-1/2" | 7-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$156.07
|
|
| 49623 | STP7510-01-PCI | 10" | Polyurethane / Cast Iron | Roller | 3000 lbs. | 11-1/2" | 7-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$138.07
|
|
| 49688 | STP7510-01-STL | 10" | Steel | Roller | 2500 lbs. | 11-1/2" | 7-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$143.07
|
|
| 49689 | STP7580-01-SDI | 8" | Ductile Iron | Roller | 5400 lbs. | 10-1/8" | 6-3/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$143.07
|
|
| 49694 | STP7510-01-PHN | 10" | Phenolic | Roller | 2900 lbs. | 11-1/2" | 7-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$129.07
|
|
| 49811 | STP7510-01-RCI | 10" | Rubber / Cast Iron | Roller | 1000 lbs. | 11-1/2" | 7-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$127.07
|
|
| 50352 | STP7512-01-STL | 12" | Steel | Roller | 2500 lbs. | 13-1/2" | 8-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$166.07
|
|
| 50471 | STP7512-01-RCI | 12" | Rubber / Cast Iron | Roller | 1200 lbs. | 13-1/2" | 8-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$159.07
|
|
| 50675 | STP7512-01-PHN | 12" | Phenolic | Roller | 3500 lbs. | 13-1/2" | 8-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$156.07
|
|
| 50711 | STP7512-01-PCI | 12" | Polyurethane / Cast Iron | Roller | 3200 lbs. | 13-1/2" | 8-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$169.07
|
|
| 51768 | STP7512-01-SDI | 12" | Ductile Iron | Roller | 5400 lbs. | 13-1/2" | 8-9/16" | Top Plate | 5-1/4" x 7-1/4" x 3/8" | 3" |
$199.07
|
