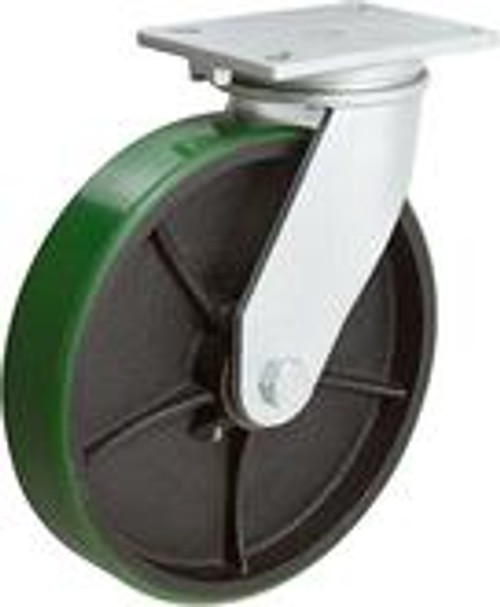

Material Flow STP7200 Series Heavy Duty Drop Forged Swivel Caster

STP7200 Series Heavy Duty Drop Forged Swivel Casters

Manufacturer: Material Flow
$114.07
(No reviews yet) Write a Review
Condition:
New

FOB: Oregon Warehouse

Lead time: 2-5 days

Push performance to the limit. The STP7200 Series Heavy Duty Drop Forged Swivel Casters from Material Flow are designed for extreme-load applications like cargo containers, trash bins, textile racks, and heavy-duty platform trucks. With thicker steel and forged strength, they’re built for industrial abuse.

Featuring a 13/32" AISI 1045 drop forged top plate and precision double ball bearings in a coined “deep-groove” raceway, these casters offer unmatched swivel control under weight. The 3/8" thick machine-welded steel legs resist bending under stress, while a 3" fork spacing and 3/4" axle and kingpin deliver rock-solid stability. When you need strength that lasts, STP7200 delivers.

  • Finish: Bright zinc plating

  • Top Plate: 13/32" AISI 1045 drop forged steel

  • Swivel Bearings: Double ball bearing, coined “deep-groove” load with machined thrust raceway

  • Fork Spacing: 3"

  • Legs: 3/8" thick, machine-welded, formed for strength

  • Kingpin: 3/4" diameter bolt and nut

  • Axle: 3/4" diameter with lock nut

  • Grease Fittings: Zerk fitting in swivel section

  • Applications:

    • Cargo containers

    • Freight terminal trucks

    • Textile carts and storage racks

    • Trash containers

    • Heavy duty platform trucks

  • Additional Info: Surcharges may apply

Model No. Model No. Fastening Type Fastening Size Overall Height Wheel Diameter Wheel Type Wheel Bearing Load Capacity Swivel Radius Tread Width Price Qty
67104 STP7260-01-PHN Top Plate 5-1/4" x 7-1/4" 7-5/8" 6" Phenolic Roller 1600 lbs. 5-3/16" 2-1/2"
$114.07
67328 STP7260-01-PCI Top Plate 5-1/4" x 7-1/4" 7-5/8" 6" Polyurethane / Cast Iron Roller 1600 lbs. 5-3/16" 2-1/2"
$121.07
67601 STP7260-01-SDL Top Plate 5-1/4" x 7-1/4" 7-5/8" 6" Ductile Iron Roller 3400 lbs. 5-3/16" 2-1/2"
$134.07
67981 STP7260-01-STL Top Plate 5-1/4" x 7-1/4" 7-5/8" 6" Steel Roller 1600 lbs. 5-3/16" 2-1/2"
$119.07
68053 STP7280-01-RCI Top Plate 5-1/4" x 7-1/4" 10-1/8" 8" Rubber / Cast Iron Roller 850 lbs. 6-3/16" 2-1/2"
$119.07
68209 STP7210-01-PCI Top Plate 5-1/4" x 7-1/4" 11-1/2" 10" Polyurethane / Cast Iron Roller 2200 lbs. 7-9/16" 2-1/2"
$142.07
68273 STP7260-01-RCI Top Plate 5-1/4" x 7-1/4" 7-5/8" 6" Rubber / Cast Iron Roller 700 lbs. 5-3/16" 2-1/2"
$116.07
68456 STP7280-01-PHN Top Plate 5-1/4" x 7-1/4" 10-1/8" 8" Phenolic Roller 2000 lbs. 6-3/16" 2-1/2"
$117.07
68669 STP7280-01-SDI Top Plate 5-1/4" x 7-1/4" 10-1/8" 8" Ductile Iron Roller 4000 lbs. 6-3/16" 2-1/2"
$155.07
68765 STP7210-01-RCI Top Plate 5-1/4" x 7-1/4" 11-1/2" 10" Rubber / Cast Iron Roller 950 lbs. 7-9/16" 2-1/2"
$131.07
68779 STP7280-01-PCI Top Plate 5-1/4" x 7-1/4" 10-1/8" 8" Polyurethane / Cast Iron Roller 2000 lbs. 6-3/16" 2-1/2"
$128.07
69101 STP7280-01-STL Top Plate 5-1/4" x 7-1/4" 10-1/8" 8" Steel Roller 1800 lbs. 6-3/16" 2-1/2"
$125.07
69174 STP7210-01-SDI Top Plate 5-1/4" x 7-1/4" 11-1/2" 10" Ductile Iron Roller 4000 lbs. 7-9/16" 2-1/2"
$155.07
69198 STP7210-01-PHN Top Plate 5-1/4" x 7-1/4" 11-1/2" 10" Phenolic Roller 2500 lbs. 7-9/16" 2-1/2"
$128.07
69361 STP7212-01-PHN Top Plate 5-1/4" x 7-1/4" 13-1/2" 12" Phenolic Roller 3000 lbs. 8-9/16" 2-1/2"
$162.07
69553 STP7212-01-STL Top Plate 5-1/4" x 7-1/4" 13-1/2" 12" Steel Roller 2200 lbs. 8-9/16" 2-1/2"
$172.07
69639 STP7210-01-STL Top Plate 5-1/4" x 7-1/4" 11-1/2" 10" Steel Roller 2000 lbs. 7-9/16" 2-1/2"
$140.07
69948 STP7212-01-PCI Top Plate 5-1/4" x 7-1/4" 13-1/2" 12" Polyurethane / Cast Iron Roller 2500 lbs. 8-9/16" 2-1/2"
$173.07
70219 STP7212-01-RCI Top Plate 5-1/4" x 7-1/4" 13-1/2" 12" Rubber / Cast Iron Roller 1000 lbs. 8-9/16" 2-1/2"
$160.07
70389 STP7212-01-SDI Top Plate 5-1/4" x 7-1/4" 13-1/2" 12" Ductile Iron Roller 4000 lbs. 8-9/16" 2-1/2"
$186.07
!
