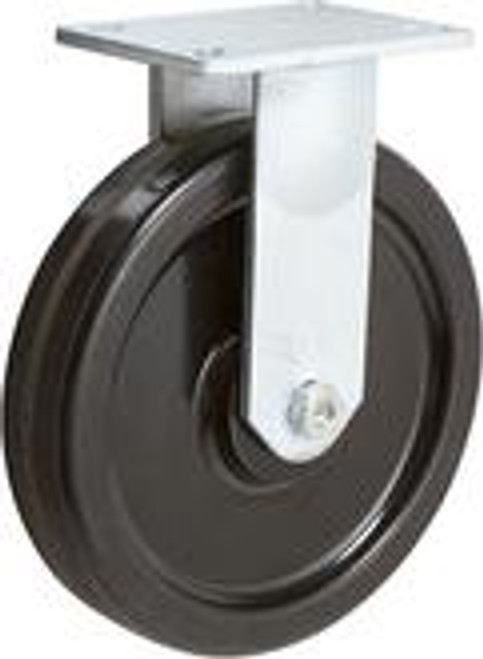

STP7200 Series Heavy Duty Drop Forged Rigid Casters
Write a Review

Material Flow
STP7200 Series Heavy Duty Drop Forged Rigid Casters
- SKU:
- STP7200 Series Heavy Duty Drop Forged Rigid Casters
- UPC:
- Condition:
- New
FOB: Oregon Warehouse
Lead time: 2-5 days
Built for the heaviest loads in the toughest environments. The STP7200 Series Heavy Duty Drop Forged Rigid Casters from Material Flow deliver exceptional durability, stability, and performance. With a rugged design tailored for cargo containers, textile carts, trash bins, and heavy-duty platform trucks, these casters provide unmatched load-bearing capability.
Engineered with a 13/32" AISI 1045 drop-forged steel top plate, 3/8" thick machine-welded steel legs, and a 3/4" axle with lock nut, this caster is built to handle extreme pressure without bending or breaking. Fork spacing is set at 3" for optimal balance and mounting, and while this rigid model does not swivel, it shares the same structural integrity and grease-fitting accessibility as its swivel counterpart. Ships within 2–5 days to keep your workflow uninterrupted.
-
Lead Time: 2–5 days
-
Caster Type: Rigid
-
Finish: Bright zinc plating
-
Top Plate: 13/32" AISI 1045 drop forged steel
-
Frame: Heavy-duty gauge steel, machine welded
-
Fork Spacing: 3"
-
Leg Thickness: 3/8"
-
Axle: 3/4" diameter with lock nut
-
Kingpin: 3/4" diameter bolt and nut
-
Grease Fittings: Zerk fitting in shared swivel section housing
-
Applications:
-
Cargo containers
-
Freight terminal trucks
-
Textile carts and storage racks
-
Trash containers
-
Heavy duty platform trucks
-
-
Additional Info: Surcharges may apply
Model No. | Model No. | Fastening Type | Fastening Size | Overall Height | Wheel Diameter | Wheel Type | Wheel Bearing | Load Capacity | Swivel Radius | Tread Width | Price | Qty |
---|---|---|---|---|---|---|---|---|---|---|---|---|
42046 | STP7260R-01-PCI | Top Plate | 5-1/4" x 7-1/4" | 7-5/8" | 6" | Polyurethane / Cast Iron | Roller | 1600 lbs. | 5-3/16" | 2-1/2" |
$56.07
|
|
42272 | STP7260R-01-PHN | Top Plate | 5-1/4" x 7-1/4" | 7-5/8" | 6" | Phenolic | Roller | 1600 lbs. | 5-3/16" | 2-1/2" |
$50.07
|
|
42572 | STP7260R-01-RCI | Top Plate | 5-1/4" x 7-1/4" | 7-5/8" | 6" | Rubber / Cast Iron | Roller | 700 lbs. | 5-3/16" | 2-1/2" |
$50.07
|
|
42913 | STP7260R-01-STL | Top Plate | 5-1/4" x 7-1/4" | 7-5/8" | 6" | Steel | Roller | 1600 lbs. | 5-3/16" | 2-1/2" |
$53.07
|
|
43335 | STP7260R-01-SDI | Top Plate | 5-1/4" x 7-1/4" | 7-5/8" | 6" | Ductile Iron | Roller | 3400 lbs. | 5-3/16" | 2-1/2" |
$70.07
|
|
43711 | STP7280R-01-PCI | Top Plate | 5-1/4" x 7-1/4" | 10-1/8" | 8" | Polyurethane / Cast Iron | Roller | 2000 lbs. | 6-3/16" | 2-1/2" |
$64.06
|
|
43929 | STP7280R-01-PHN | Top Plate | 5-1/4" x 7-1/4" | 10-1/8" | 8" | Phenolic | Roller | 2000 lbs. | 6-3/16" | 2-1/2" |
$51.07
|
|
44141 | STP7280R-01-RCI | Top Plate | 5-1/4" x 7-1/4" | 10-1/8" | 8" | Rubber / Cast Iron | Roller | 850 lbs. | 6-3/16" | 2-1/2" |
$53.07
|
|
44249 | STP7280R-01-STL | Top Plate | 5-1/4" x 7-1/4" | 10-1/8" | 8" | Steel | Roller | 1800 lbs. | 6-3/16" | 2-1/2" |
$61.07
|
|
44385 | STP7280R-01-SDI | Top Plate | 5-1/4" x 7-1/4" | 10-1/8" | 8" | Ductile Iron | Roller | 4000 lbs. | 6-3/16" | 2-1/2" |
$87.07
|
|
44737 | STP7210R-01-PCI | Top Plate | 5-1/4" x 7-1/4" | 11-1/2" | 10" | Polyurethane / Cast Iron | Roller | 2200 lbs. | 7-9/16" | 2-1/2" |
$77.07
|
|
45181 | STP7210R-01-PHN | Top Plate | 5-1/4" x 7-1/4" | 11-1/2" | 10" | Phenolic | Roller | 2500 lbs. | 7-9/16" | 2-1/2" |
$65.07
|
|
45488 | STP7210R-01-RCI | Top Plate | 5-1/4" x 7-1/4" | 11-1/2" | 10" | Rubber / Cast Iron | Roller | 950 lbs. | 7-9/16" | 2-1/2" |
$67.07
|
|
45658 | STP7210R-01-STL | Top Plate | 5-1/4" x 7-1/4" | 11-1/2" | 10" | Steel | Roller | 2000 lbs. | 7-9/16" | 2-1/2" |
$76.07
|
|
45772 | STP7210R-01-SDI | Top Plate | 5-1/4" x 7-1/4" | 11-1/2" | 10" | Ductile Iron | Roller | 4000 lbs. | 7-9/16" | 2-1/2" |
$111.07
|
|
45959 | STP7212R-01-PCI | Top Plate | 5-1/4" x 7-1/4" | 13-1/2" | 12" | Polyurethane / Cast Iron | Roller | 2500 lbs. | 8-9/16" | 2-1/2" |
$91.07
|
|
46055 | STP7212R-01-PHN | Top Plate | 5-1/4" x 7-1/4" | 13-1/2" | 12" | Phenolic | Roller | 3000 lbs. | 8-9/16" | 2-1/2" |
$80.07
|
|
46358 | STP7212R-01-RCI | Top Plate | 5-1/4" x 7-1/4" | 13-1/2" | 12" | Rubber / Cast Iron | Roller | 1000 lbs. | 8-9/16" | 2-1/2" |
$77.07
|
|
46445 | STP7212R-01-STL | Top Plate | 5-1/4" x 7-1/4" | 13-1/2" | 12" | Steel | Roller | 2200 lbs. | 8-9/16" | 2-1/2" |
$91.07
|
|
46724 | STP7212R-01-SDI | Top Plate | 5-1/4" x 7-1/4" | 13-1/2" | 12" | Ductile Iron | Roller | 4000 lbs. | 8-9/16" | 2-1/2" |
$128.07
|
