STP6800 Medium-Heavy Duty Swivel Casters - Continued
- SKU:
- STP6800 Medium-Heavy Duty Swivel Casters - Continued
- UPC:
- Condition:
- New
FOB: Oregon Warehouse
Lead time: 2-5 days
This is the Heavy Duty Plastic, Phenolic, & Pro-Tech Xtra models.
For other styles please go HERE.

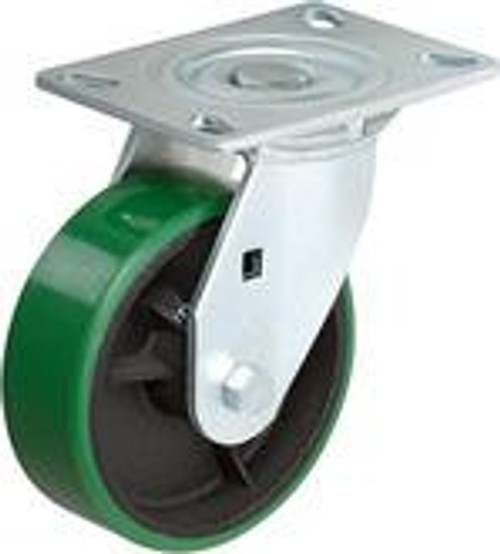

Engineered for strength and built for reliable performance, the STP6800 Medium-Heavy Duty Swivel Casters from Material Flow deliver unstoppable mobility for heavy-duty applications. These casters feature a bright zinc-plated finish and a double ball bearing swivel with hardened raceways—ensuring smooth, consistent motion under load. The robust 1/4" thick steel top plate and legs enhance load capacity, while the PSL-notched design offers the option for a 4-position swivel lock, boosting directional control.
Designed for serious industrial use, these casters include grease fittings in both the swivel raceway and wheel bearings for lasting reliability. A 1/2" diameter axle with a lock nut secures the assembly, making these ideal for cargo containers, freight terminal trucks, material handling carts, and large platform trucks.
-
Finish: Bright zinc plating
-
Swivel: Double ball bearing with hardened raceways
-
Fork Leg Spacing: 2-1/2"
-
Top Plate and Legs: 1/4" thick for added strength
-
Construction: Large top plate and raceway for strength & easy swivel
-
Grease Fittings: In swivel raceway and wheel bearings
-
Swivel Lock: PSL-notched for optional 4-position lock
-
Axle: 1/2" diameter axle with lock nut
-
Applications: Cargo containers, freight terminal trucks, material handling carts, large platform trucks
-
Note: Surcharges may apply
| Model No. | Model No. | Fastening Type | Fastening Size | Overall Height | Wheel Diameter | Wheel Type | Wheel Bearing | Load Capacity | Swivel Radius | Tread Width | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 68176 | STP6840-01-HPR | Top Plate | 4-1/2" x 6-1/4" | 5-5/8" | 4" | Heavy Duty Plastic | Roller | 550 lbs. | 3-13/16" | 2" |
$33.07
|
|
| 69338 | STP6840-01-PHN | Top Plate | 4-1/2" x 6-1/4" | 5-5/8" | 4" | Phenolic | Roller | 800 lbs. | 3-13/16" | 2" |
$32.07
|
|
| 69701 | STP6840-01-PRX-PBB | Top Plate | 4-1/2" x 6-1/4" | 5-5/8" | 4" | Pro-Tech Xtra | Precision | 700 lbs. | 3-13/16" | 2" |
$31.07
|
|
| 70003 | STP6850-01-HPR | Top Plate | 4-1/2" x 6-1/4" | 6-1/2" | 5" | Heavy Duty Plastic | Roller | 650 lbs. | 4" | 2" |
$33.07
|
|
| 70582 | STP6850-01-PHN | Top Plate | 4-1/2" x 6-1/4" | 6-1/2" | 5" | Phenolic | Roller | 1000 lbs. | 4" | 2" |
$35.07
|
|
| 71123 | STP6850-01-PRX-PBB | Top Plate | 4-1/2" x 6-1/4" | 6-1/2" | 5" | Pro-Tech Xtra | Precision | 800 lbs. | 4" | 2" |
$36.07
|
|
| 72414 | STP6860-01-PHN | Top Plate | 4-1/2" x 6-1/4" | 7-1/2" | 6" | Phenolic | Roller | 1200 lbs. | 4-3/4" | 2" |
$36.07
|
|
| 72803 | STP6860-01-HPR | Top Plate | 4-1/2" x 6-1/4" | 7-1/2" | 6" | Heavy Duty Plastic | Roller | 700 lbs. | 4-3/4" | 2" |
$35.07
|
|
| 73356 | STP6860-01-PRX-PBB | Top Plate | 4-1/2" x 6-1/4" | 7-1/2" | 6" | Pro-Tech Xtra | Precision | 1000 lbs. | 4-3/4" | 2" |
$39.07
|
|
| 74327 | STP6880-01-HPR | Top Plate | 4-1/2" x 6-1/4" | 9-3/4" | 8" | Heavy Duty Plastic | Roller | 700 lbs. | 6-1/4" | 2" |
$40.07
|
|
| 74632 | STP6880-01-PRX-PBB | Top Plate | 4-1/2" x 6-1/4" | 9-3/4" | 8" | Pro-Tech Xtra | Precision | 1200 lbs. | 6-1/4" | 2" |
$46.07
|
|
| 74874 | STP6880-01-PHN | Top Plate | 4-1/2" x 6-1/4" | 9-3/4" | 8" | Phenolic | Roller | 1250 lbs. | 6-1/4" | 2" |
$42.07
|
