Steel Wheel Riser with Central Fork Pocket
Manufacturer: Vestil
MSRP:
Was:
Now:
$1,324.68
(You save
)
- SKU:
- Steel Wheel Riser with Central Fork Pocket
- UPC:
FOB: Our Indiana Warehouse

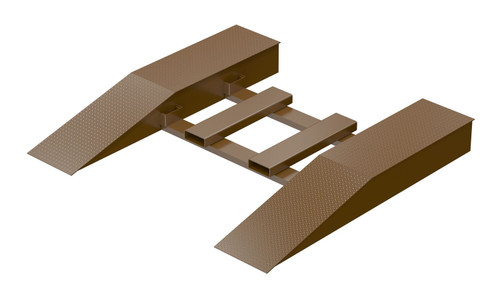

The Vestil Steel Wheel Riser with Central Fork Pocket, available at Material Flow, is designed to enhance safety and efficiency during loading and unloading operations. Engineered to meet OSHA/ANSI B56.1 standards, this heavy-duty riser ensures compliance for maximum grade when operating loaded fork trucks. Its durable construction supports up to 40,000 lbs per pair, with 1/4-inch thick steel material for superior strength.
Key features include built-in fork pocket loops for ease of transport, a raised diamond tread plate surface for a non-slip grip, and a 24-inch fork pocket center. When not in use, these ramps can be stacked for compact storage, maximizing workspace efficiency.
Upgrade your industrial operations with the reliability of Vestil Steel Wheel Risers—available now at Material Flow!
- Uniform Capacity: 40,000 lbs per pair
- Material Thickness: 1/4 inch
- Raised Diamond Tread Surface: Ensures non-slip functionality
- Fork Pocket Center: 24 inches
- Construction: Heavy-duty welded steel
| Model No. | Model No. | Uniform Capacity | Individual Wheel Riser L x W x H | Width Between Wheel Risers | Fork Pocket W x H | Fork Pocket Center | Overall Dimensions | Weight | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|
| 102180 | SWR-CPL-18-10-60 | 40,000 lbs. | 60.0625"L x 18"W x 10.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 60.0625"L x 10.25"H | 576 lbs. |
$1,581.07
|
|
| 102181 | SWR-CPL-18-10-72 | 40,000 lbs. | 72.0625"L x 18"W x 10.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 72.0625"L x 10.25"H | 663 lbs. |
$1,767.46
|
|
| 102182 | SWR-CPL-18-10-84 | 40,000 lbs. | 84.0625"L x 18"W x 10.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 84.0625"L x 10.25"H | 728 lbs. |
$1,895.20
|
|
| 102183 | SWR-CPL-18-10-96 | 40,000 lbs. | 96.0625"L x 18"W x 10.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 96.0625"L x 10.25"H | 830 lbs. |
$2,066.74
|
|
| 102184 | SWR-CPL-18-12-108 | 40,000 lbs. | 108.0625"L x 18"W x 10.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 108.0625"L x 12.25"H | 958 lbs. |
$2,318.68
|
|
| 102185 | SWR-CPL-18-12-72 | 40,000 lbs. | 72.0625"L x 18"W x 12.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 72.0625"L x 12.25"H | 675 lbs. |
$1,775.34
|
|
| 102186 | SWR-CPL-18-12-84 | 40,000 lbs. | 84.0625"L x 18"W x 12.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 84.0625"L x 12.25"H | 774 lbs. |
$1,970.49
|
|
| 102187 | SWR-CPL-18-12-96 | 40,000 lbs. | 96.0625"L x 18"W x 12.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 96.0625"L x 12.25"H | 855 lbs. |
$2,131.38
|
|
| 102188 | SWR-CPL-18-6-48 | 40,000 lbs. | 48.0625"L x 18"W x 6.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 48.0625"L x 6.25"H | 428 lbs. |
$1,324.68
|
|
| 102189 | SWR-CPL-18-6-60 | 40,000 lbs. | 60.0625"L x 18"W x 6.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 60.0625"L x 6.25"H | 525 lbs. |
$1,478.68
|
|
| 102190 | SWR-CPL-18-6-72 | 40,000 lbs. | 72.0625"L x 18"W x 6.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 72.0625"L x 6.25"H | 576 lbs. |
$1,645.80
|
|
| 102191 | SWR-CPL-18-6-84 | 40,000 lbs. | 84.0625"L x 18"W x 6.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 84.0625"L x 6.25"H | 645 lbs. |
$1,798.93
|
|
| 102192 | SWR-CPL-18-8-60 | 40,000 lbs. | 60.0625"L x 18"W x 8.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 60.0625"L x 8.25"H | 557 lbs. |
$1,533.81
|
|
| 102193 | SWR-CPL-18-8-72 | 40,000 lbs. | 72.0625"L x 18"W x 8.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 72.0625"L x 8.25"H | 615 lbs. |
$1,688.70
|
|
| 102194 | SWR-CPL-18-8-84 | 40,000 lbs. | 84.0625"L x 18"W x 8.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 84.0625"L x 8.25"H | 696 lbs. |
$1,836.46
|
|
| 102195 | SWR-CPL-18-8-96 | 40,000 lbs. | 96.0625"L x 18"W x 8.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 89.125"W x 96.0625"L x 8.25"H | 764 lbs. |
$1,998.41
|
|
| 102196 | SWR-CPL-24-10-60 | 40,000 lbs. | 60.0625"L x 24"W x 10.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 60.0625"L x 10.25"H | 654 lbs. |
$1,714.05
|
|
| 102197 | SWR-CPL-24-10-72 | 40,000 lbs. | 72.0625"L x 24"W x 10.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 72.0625"L x 10.25"H | 760 lbs. |
$1,592.96
|
|
| 102198 | SWR-CPL-24-10-84 | 40,000 lbs. | 84.0625"L x 24"W x 10.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 84.0625"L x 10.25"H | 835 lbs. |
$2,114.83
|
|
| 102199 | SWR-CPL-24-10-96 | 40,000 lbs. | 96.0625"L x 24"W x 10.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 96.0625"L x 10.25"H | 957 lbs. |
$2,334.49
|
|
| 102200 | SWR-CPL-24-12-108 | 40,000 lbs. | 108.0625"L x 24"W x 12.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 108.0625"L x 12.25"H | 1,149 lbs. |
$2,637.15
|
|
| 102201 | SWR-CPL-24-12-72 | 40,000 lbs. | 72.0625"L x 24"W x 12.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 72.0625"L x 12.25"H | 769 lbs. |
$1,973.93
|
|
| 102202 | SWR-CPL-24-12-84 | 40,000 lbs. | 84.0625"L x 24"W x 12.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 84.0625"L x 12.25"H | 889 lbs. |
$2,164.74
|
|
| 102203 | SWR-CPL-24-12-96 | 40,000 lbs. | 96.0625"L x 24"W x 12.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 96.0625"L x 12.25"H | 980 lbs. |
$2,336.20
|
|
| 102204 | SWR-CPL-24-6-48 | 40,000 lbs. | 48.0625"L x 24"W x 12.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 48.0625"L x 6.25"H | 484 lbs. |
$1,433.09
|
|
| 102205 | SWR-CPL-24-6-60 | 40,000 lbs. | 60.0625"L x 24"W x 6.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 60.0625"L x 6.25"H | 595 lbs. |
$1,613.46
|
|
| 102206 | SWR-CPL-24-6-72 | 40,000 lbs. | 72.0625"L x 24"W x 6.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 72.0625"L x 6.25"H | 657 lbs. |
$1,797.20
|
|
| 102207 | SWR-CPL-24-6-84 | 40,000 lbs. | 84.0625"L x 24"W x 6.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 84.0625"L x 6.25"H | 743 lbs. |
$1,917.05
|
|
| 102208 | SWR-CPL-24-8-60 | 40,000 lbs. | 60.0625"L x 24"W x 8.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 60.0625"L x 8.25"H | 633 lbs. |
$1,683.48
|
|
| 102209 | SWR-CPL-24-8-72 | 40,000 lbs. | 72.0625"L x 24"W x 8.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 72.0625"L x 8.25"H | 701 lbs. |
$1,873.35
|
|
| 102210 | SWR-CPL-24-8-84 | 40,000 lbs. | 84.0625"L x 24"W x 8.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 84.0625"L x 8.25"H | 800 lbs. |
$2,078.03
|
|
| 102211 | SWR-CPL-24-8-96 | 40,000 lbs. | 96.0625"L x 24"W x 8.25"H | 53.125" | 7.5"W x 2.5"H | 24" | 101.125"W x 96.0625"L x 8.25"H | 878 lbs. |
$2,211.09
|
!
