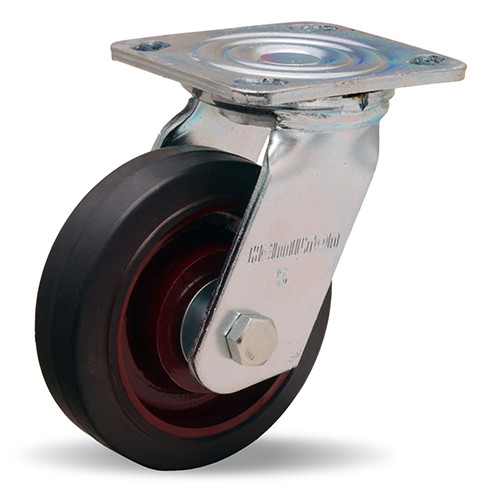

Hamilton WW Whirlaway Caster S-WW-5R (Shown with Mold-On Rubber wheel)

Series WW Whirlaway Casters - 5 inch Diameter

Manufacturer: Hamilton Caster
$43.07
(No reviews yet) Write a Review

FOB: Midwest Warehouse
In stock


  • Swivel Construction — Cold forged steel mounting plate and horn base. Legs 1/4" plate steel, contoured to increase strength and welding area to the horn base.
  • Kingpin — 5/8" diameter orbitally formed rivet.
  • Main and Secondary Load Bearings — Hardened and polished steel balls rotate in two heat treated raceways.
  • Axle — 1/2" diameter bolt with lock nut.
  • Ball Check Lubrication Fittings — In swivel assembly and to roller bearings in most wheels.
  • Top plate: 4" x 4-1/2", slotted bolt holes.


Featured Wheel Bearings:
Straight Roller Bearing - traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent.

Model No. Model No. Description Diameter Face Type Capacity Total Height Swivel Offset Weight Price Qty
78052 S-WW-5D Swivel with Straight Roller Bearing 5" 1-1/2" Duralast 550 lbs. 6-1/2" 1-7/8" 6.5 lbs.
$138.60
$88.07
77446 R-WW-5D Rigid with Straight Roller Bearing 5" 1-1/2" Duralast 550 lbs. 6-1/2" -- 5.75 lbs.
$128.90
$79.07
78336 S-WW-5P Swivel with Straight Roller Bearing 5" 1-1/2" Plastex 550 lbs. 6-1/2" 1-7/8" 5 lbs.
$78.80
$49.07
77767 R-WW-5P Rigid with Straight Roller Bearing 5" 1-1/2" Plastex 550 lbs. 6-1/2" -- 4.25 lbs.
$69.20
$43.07
78639 S-WW-5R Swivel with Straight Roller Bearing 5" 1-1/2" Mold-on Rubber 240 lbs. 6-1/2" 1-7/8" 6.5 lbs.
$114.30
$73.07
77877 R-WW-5R Rigid with Straight Roller Bearing 5" 1-1/2" Mold-on Rubber 240 lbs. 6-1/2" -- 5.75 lbs.
$105.80
$69.07
!
