Scale-Equipped Vertical-Lift Drum Pourers

Manufacturer: Morse
$14,222.22
(No reviews yet) Write a Review
Condition:
New

FOB: Our New York Warehouse

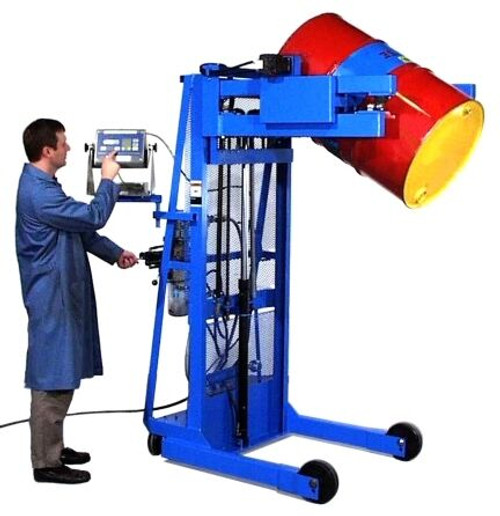

Weigh While You Pour—Precision Drum Handling by Morse

Take the guesswork out of drum dispensing with Morse Scale-Equipped Vertical-Lift Drum Pourers, now available from Material Flow. Engineered for accuracy and efficiency, these advanced drum handlers let you weigh your contents as you pour—eliminating the need for a separate scale station.

Choose from Single-Stage models with lift heights up to 60" or Two-Stage options that reach up to 106", both featuring 360° tilt control for precision pouring. Compact and easy to maneuver, these pourers are ideal for tight workspaces and critical batching environments.

Select from two integrated scale types: the N-Type Scale for general-purpose weighing or the T-Type Scale, which is intrinsically safe and certified for hazardous locations. With load cell accuracy of ±0.2% and durable Morse craftsmanship, this system ensures reliable, weight-specific drum dispensing every time.

Trust Material Flow to deliver the innovation and safety of Morse—optimized for your operation.

  • Brand: Morse

  • Models:

    • Single-Stage Lift Height: Up to 60"

    • Two-Stage Lift Height: Up to 106"

  • Tilt Control: 360° rotation in either direction

  • Capacity:

    • 800 lbs. (full drum)

    • 500 lbs. (half-full drum)

  • Lift & Tilt: Power options available

  • Scales Available:

    • T-Type Scale: Intrinsically safe, ULPI indicator for hazardous areas

    • N-Type Scale: General-purpose, battery-powered

  • Scale Accuracy: ±0.2% (to 0.1-lbs. or metric)

  • Load Cells: 4, for accurate weighing regardless of drum tilt

  • Construction Options: Spark-resistant and stainless steel available

  • Power Source:

    • T-Type: Rechargeable battery pack w/ charger (115V or 220V option)

    • N-Type: 6 D-cell alkaline batteries

  • Distributed by: Material Flow

  • Surcharges: May apply



Two Types of Scales
The scales are simple to use and to read enabling accurate batching by weight. The touch pads include numbers for tare entry. Four load cells accurately sense the weight regardless of the tilt angle of the drum. Battery saving “sleep” mode turns indicator off when scale is not in use. Display weight to 0.1-lbs. (or set to display metric units). Accuracy of +/-0.2%.

T-Type Scale
Features an intrinsically safe, ultra low power intensity (ULPI) indicator for use in many hazardous areas, approved for all classes, groups and divisions of N.E.C. hazardous environment classifications. The hand pumped or air powered drum handler with this intrinsically safe weighing system may be used in many hazard areas where ordinary electric powered equipment would be prohibited. Comes with battery pack and 115V 60Hz charger. Order option T-220-50 for 220V 50Hz battery pack and charger.

N-Type Scale
Economical general purpose instrument for use in a variety of weighing applications. NOT for use in hazardous areas. Powered by six ordinary alkaline D-cell batteries.
