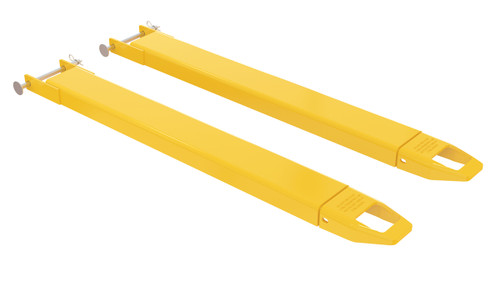

Pin Style Fork Extensions
- SKU:
- Pin Style Fork Extensions
- UPC:
- Condition:
- New
FOB: Our Indiana Warehouse
Lift long or oversized loads with confidence using Vestil Pin Style Fork Extensions—now available at Material Flow. Designed for quick installation and rugged performance, these heavy-duty extensions provide the extra reach forklifts need when standard forks fall short.
Built from welded steel and equipped with cast steel tips, these extensions deliver long-lasting durability. A baked-in powder-coated finish resists wear and corrosion, while each pair supports up to 4,000 lbs. of uniformly distributed weight.
Installation is simple: remove the safety pin, slide the extension onto the fork, then reinsert the pin behind the fork’s heel to secure. Designed for class 2 and class 3 forks, these extensions help ensure safe, OSHA-compliant operation—ideal for warehouses, distribution centers, and heavy-duty industrial applications.
-
Brand: Vestil
-
Product Type: Pin Style Fork Extensions
-
Material: Welded steel with cast steel tips
-
Finish: Baked-in powder-coated (yellow)
-
Capacity: 4,000 lbs. uniformly distributed per pair
-
Installation:
-
Remove pin
-
Slide over fork
-
Reinsert pin behind fork heel
-
-
Compliance: Meets OSHA requirements
-
Extensions must not exceed 150% of original fork length
-
-
Compatibility: For use with Class 2 and Class 3 forks only
-
Safety Features:
-
Operating and warning labels included
-
Pin-lock mechanism for secure attachment
-
-
Note: Sold per pair. Surcharges may apply
| Model No. | Model No. | Accommodates Fork Width | Fork Extension Inside Width | Length | Maximum Fork Thickness | Weight Per Pair | Price | Qty |
|---|---|---|---|---|---|---|---|---|
| 47385 | FE-4-54-P | 4" | 4-1/2" | 54" | 2" | 84 lbs. |
$378.48
$331.18
|
|
| 47437 | FE-4-63-P | 4" | 4-1/2" | 63" | 2" | 98 lbs. |
$360.65
|
|
| 47459 | FE-4-48-P | 4" | 4-1/2" | 48" | 2" | 80 lbs. |
$320.36
|
|
| 47501 | FE-4-66-P | 4" | 4-1/2" | 66" | 2" | 102 lbs. |
$391.41
|
|
| 47690 | FE-4-72-P | 4" | 4-1/2" | 72" | 2" | 114 lbs. |
$409.23
|
|
| 47703 | FE-4-90-P | 4" | 4-1/2" | 90" | 2" | 167 lbs. |
$477.06
|
|
| 47905 | FE-4-84-P | 4" | 4-1/2" | 84" | 2" | 154 lbs. |
$455.42
|
|
| 48608 | FE-5-54-P | 5" | 5-1/2" | 54" | 2" | 96 lbs. |
$387.20
|
|
| 48759 | FE-4-120-P | 4" | 4-1/2" | 120" | 2" | 208 lbs. |
$578.71
|
|
| 48795 | FE-5-48-P | 5" | 5-1/2" | 48" | 2" | 86 lbs. |
$377.40
|
|
| 48944 | FE-4-108-P | 4" | 4-1/2" | 108" | 2" | 182 lbs. |
$563.88
|
|
| 48964 | FE-4-96-P | 4" | 4-1/2" | 96" | 2" | 172 lbs. |
$498.43
|
|
| 49729 | FE-5-90-P | 5" | 5-1/2" | 90" | 2" | 185 lbs. |
$533.66
|
|
| 49786 | FE-5-84-P | 5" | 5-1/2" | 84" | 2" | 161 lbs. |
$513.06
|
|
| 50049 | FE-5-72-P | 5" | 5-1/2" | 72" | 2" | 128 lbs. |
$466.75
|
|
| 50114 | FE-5-63-P | 5" | 5-1/2" | 63" | 2" | 110 lbs. |
$417.65
|
|
| 50224 | FE-5-66-P | 5" | 5-1/2" | 66" | 2" | 116 lbs. |
$448.86
|
|
| 50590 | FE-6-48-P | 6" | 6-1/2" | 48" | 2-1/2" | 94 lbs. |
$422.06
|
|
| 50736 | FE-5-120-P | 5" | 5-1/2" | 120" | 2" | 226 lbs. |
$636.31
|
|
| 50927 | FE-5-108-P | 5" | 5-1/2" | 108" | 2" | 214 lbs. |
$621.95
|
|
| 51060 | FE-5-96-P | 5" | 5-1/2" | 96" | 2" | 192 lbs. |
$555.08
|
|
| 51142 | FE-6-72-P | 6" | 6-1/2" | 72" | 2-1/2" | 134 lbs. |
$497.90
|
|
| 51400 | FE-6-66-P | 6" | 6-1/2" | 66" | 2-1/2" | 128 lbs. |
$502.41
|
|
| 51804 | FE-6-120-P | 6" | 6-1/2" | 120" | 2-1/2" | 244 lbs. |
$696.93
|
|
| 51825 | FE-6-63-P | 6" | 6-1/2" | 63" | 2-1/2" | 116 lbs. |
$444.40
|
|
| 51964 | FE-6-108-P | 6" | 6-1/2" | 108" | 2-1/2" | 216 lbs. |
$630.08
|
|
| 52074 | FE-6-54-P | 6" | 6-1/2" | 54" | 2-1/2" | 104 lbs. |
$446.18
|
|
| 52150 | FE-6-90-P | 6" | 6-1/2" | 90" | 2-1/2" | 196 lbs. |
$575.54
|
|
| 52398 | FE-6-84-P | 6" | 6-1/2" | 84" | 2-1/2" | 174 lbs. |
$555.03
|
