Roach Model B Ball Transfer Gravity Conveyor

Model B Ball Transfer Gravity Conveyor

Manufacturer: Roach Conveyors

Quote For Price
(No reviews yet) Write a Review
Condition:
New

FOB: Our Arkansas Warehouse

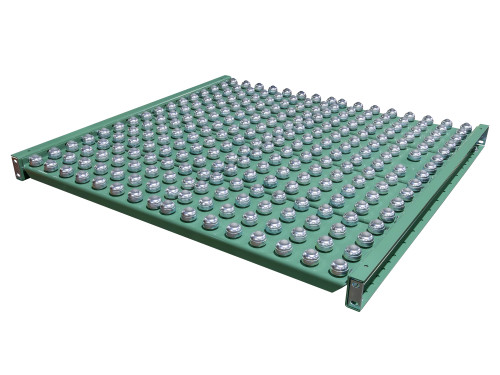

Boost your material handling efficiency with the Roach Model B Ball Transfer Gravity Conveyor, available from Material Flow. Designed for heavy-duty, multi-directional movement, this conveyor is ideal for assembly lines, inspection stations, packing areas, and other demanding applications.

Equipped with 1″ steel ball transfer assemblies, each rated for 50 lbs. per ball, this unit allows smooth, 360° movement of pallets, cartons, and other flat-bottom loads. A maximum unit load of 200 lbs. is supported across four balls simultaneously, while the robust 10-gauge steel frame offers 1300 lbs. live load capacity per 10′ section (3200 lbs. with 5′ support centers).

Key Features:

  • 1″ dia. steel ball transfers in set-high configuration

  • 3-1/2″ x 1-1/2″ x 10 ga. steel side frames

  • 10 ga. formed plate (up to 39″ BF), 7 ga. above 39″

  • Butt-type couplings for easy integration

  • Ideal for conveyor intersections, transfers, or workstation integration

Engineered by Roach Conveyors, this model provides reliable performance and long-lasting durability for high-traffic, high-load operations.

Model No. Model No. Ball Capacity Frame Capacity Price Qty
105215 MODEL B 50 lbs. per ball with max. unit load not to exceed the capacity of 4 balls (200#) 1,300 lbs. maximum distributed live load per 10′ section with supports at 10′ centers; 3200 lbs. at 5′ centers. Quote for Price
!
