Product enters scrambled - exists single file

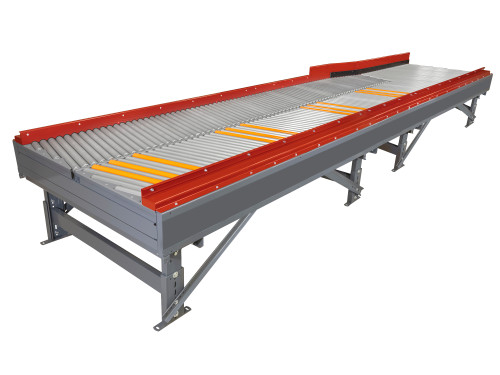

Increase parcel handling efficiency and streamline package sorting operations with the Gator Singulator from Material Flow, manufactured by Roach Conveyors. Designed specifically for parcel processing, e-commerce fulfillment, shipping hubs, and pre-sorting applications, the Gator Singulator transforms randomly spaced packages and polybags into a consistent single-file flow for downstream scanning, sorting, and distribution systems.
Capable of processing up to 6,500 packages and polybags per hour, the Gator Singulator uses advanced skewed roller technology and multiple speed transitions to automatically separate and orient products as they travel through the conveyor. As items enter the system in a scrambled pattern, they are guided toward the center of the conveyor where they rotate into a lengthwise orientation before exiting in a controlled single-file sequence.
The system utilizes dual center drives and high-speed precision rollers arranged in a herringbone pattern to maximize throughput while maintaining product control. Powered by a low-profile 24V DC brushless motor system, the conveyor delivers high-speed performance with quiet operation and exceptional reliability.
Built for modern parcel and package handling environments, the Roach Conveyors Gator Singulator improves sortation accuracy, increases processing speed, reduces bottlenecks, and enhances overall operational efficiency in distribution centers, parcel hubs, and fulfillment facilities.
Features & Benefits
-
Converts random package flow into organized single-file product streams
-
Processes up to 6,500 packages and polybags per hour
-
High-speed operation with discharge speeds up to 450 FPM
-
Advanced skewed roller design automatically aligns products
-
Herringbone roller pattern improves singulation performance
-
Dual center drives provide reliable package movement
-
24V DC brushless motor system offers quiet, energy-efficient operation
-
Ideal for parcel sorting, scanning, and distribution applications
-
Increases throughput and reduces conveyor congestion
-
Supports e-commerce, logistics, parcel, and fulfillment operations
Technical Specifications
-
Manufacturer: Roach Conveyors
-
Load Capacity: 50 lbs./ft.
-
Infeed Speed: 60 FPM
-
Discharge Speed: Up to 450 FPM
-
Roller Type: OD Galvanized Grooved Rollers
-
Roller Centers: 2.1"
-
Between Frame Width: 56"
-
Conveying Surface Width: 48"
-
Length: 16'–20'
-
In-Feed Height: 32"
-
Discharge Height: 32"
-
Construction: 10" x 1-1/2" x 10 Gauge Formed Channel Frames
-
Supports: Heavy Duty Structural
-
Casters: Rubber Swivel Casters with Brake Lock & Swivel Lock
-
Motor: 24V DC Brushless Motor System
-
E-Stops: Optional
-
Warranty: 12 Months Electrical / 24 Months Mechanical
Available Options
-
Guard Rails
-
Coated Rollers
-
Laser Sensors
-
E-Stops
-
ABEC Sealed Precision Bearings
Compatible Parcel Solutions
-
MDZ Motor Driven Zone Accumulation
-
MCS Modular Connect System
-
Cull Belts
-
Scan Belts
-
PowerFlex Conveyor Systems
