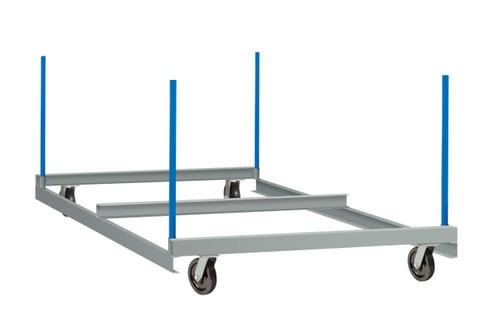

The Little Giant Bunk Truck is built for moving full sheet panels, oversized materials, and long bulky loads through warehouses, production floors, and shipping areas. With an up to 4000 lb load capacity, this heavy-duty material handling cart delivers the strength and stability needed for demanding industrial environments.
Constructed with a 3” x 1-1/2” structural C-channel frame, the bunk truck provides exceptional durability while maintaining a low deck height for easier loading. Removable 1-5/16” diameter stake pipes extend 30” above the deck, helping to stabilize large sheet goods and stacked materials during transport. Mobility is supported by 8” phenolic wheels with a caster configuration of 2 rigid and 2 swivel casters, offering controlled tracking and maneuverability even under heavy loads. With generous overall dimensions and a wide spacing between uprights, this bunk truck is an ideal solution for transporting lumber, panels, doors, and other long stock safely and efficiently.
-
Up to 4000 lb capacity for heavy-duty transport
-
Ideal for full sheet panels and long, bulky loads
-
3” x 1-1/2” structural C-channel frame for high strength
-
Removable 1-5/16” diameter stake pipes for load retention
-
Stake pipes extend 30” above deck for stability
-
8” phenolic wheels for smooth rolling and wear resistance
-
Caster configuration: 2 rigid + 2 swivel for control and turning
-
Overall dimensions: 54”W x 86-1/2”L x 10-1/2”H
-
Width between uprights: 51-1/4”
