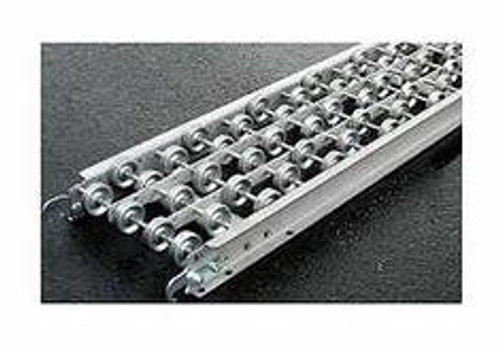

AW Series Aluminum Wheel Skate Wheel Conveyors - 12" Width

FOB: Midwest Warehouse

Skate wheel conveyors are well suited to glide lightweight cartons and packages from one station to another. They're particularly ideal if you must set up a temporary conveyor line. Merely hook the sections together and away you go. Take note that aluminum is truly light in weight. For use in shipping, warehousing and other assembly areas. Also available with black plastic and white nylon wheels and stainless steel frames.

Specifications:

• Wheels: 2" x 5/8" ball bearing
• Axles: 1/4" on 3" centers
• Frame: 2-1/2" x 1" x 1", 1/8" aluminum formed channel
• 5 cross braces and 2 full length 1" x 1/8" aluminum center supports
• Hook and bolt couplers standard
• 10' frame capacity: Aluminum 30 lbs./ft.
• 5' frame capacity: Aluminum 100 lbs./ft.
