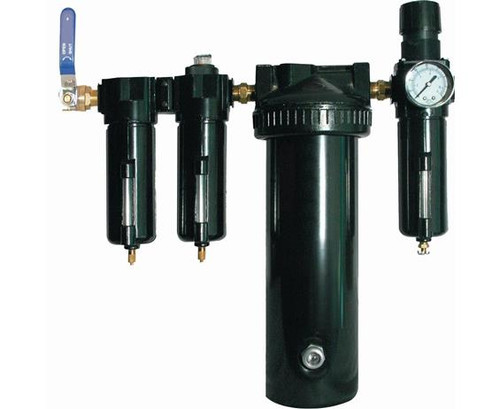

Arrow 5 Stage Desiccant Filter/Dryer

Elevate your compressed air quality with the Action Pump Arrow 5 Stage Desiccant Filter/Dryer, engineered for peak performance and reliability. This robust air treatment solution delivers five stages of filtration to remove water, oil, and particulates—protecting downstream equipment and maximizing system efficiency.

Start with a 40 micron water‑removing filter and a .01 micron oil filter, both featuring 10 oz. metal bowls with sight glasses and manual drains for easy maintenance. A 1 gallon desiccant filter provides deep moisture adsorption, while the final 3 micron filter/regulator with a 9 oz. metal bowl, sight glass, manual drain, and gauge ensures clean, dry, regulated air. Rated for 25 SCFM, this compact powerhouse operates from 5–125 PSI, handles up to 200 PSI, and includes 2 quarts of desiccant media. Perfect for industrial and pneumatic systems where air quality matters.

• Brand: Action Pump

• Model: Arrow 5 Stage Desiccant Filter/Dryer

• Filtration Stages: 5

  • 1st: 40 micron water filter (10 oz. metal bowl)

  • 2nd: .01 micron oil filter (10 oz. metal bowl)

  • 3rd: 1 gallon desiccant filter

  • 4th: 3 micron filter/regulator (9 oz. metal bowl) with gauge

• Flow Capacity: 25 SCFM

• Pressure Range: 5–125 PSI (max 200 PSI)

• Media: 2 quarts desiccant

• Features: Sight glasses, manual drains, integrated regulator

• Surcharges: May apply
