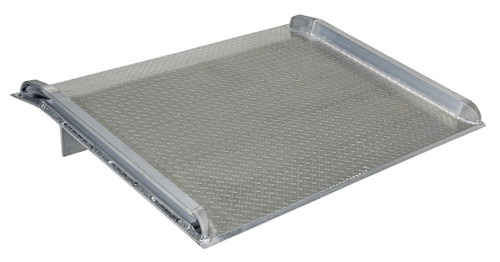

Aluminum Truck Dock Board with Welded Aluminum Curbs - 10,000 lb. Capacity
Write a Review
Vestil
Aluminum Truck Dock Board with Welded Aluminum Curbs - 10,000 lb. Capacity
- SKU:
- Aluminum Truck Dock Board with Welded Aluminum Curbs - 10,000 lb. Capacity
- UPC:
FOB: Our Indiana Warehouse
The Vestil Aluminum Truck Dock Board, available through Material Flow, is expertly designed to maximize safety and efficiency in loading operations. With a 10,000 lb. capacity, this durable dock board features 100% aluminum construction for rugged, long-lasting use. Its welded aluminum safety curbs not only prevent accidental runoffs but also offer a clear visual guide for operators. The beveled edges ensure smooth entry and exit, while the raised-diamond tread plate surface provides excellent traction.
Engineered with locking legs to prevent movement during loading and unloading, this dock board also sits canted when not in use for easier forklift access. Designed to handle heavy fork trucks and loads, it meets OSHA standards for workplace safety. Perfect for three-wheeled forklifts when capacity is adjusted correctly, the dock board is a must-have for any operation requiring secure and efficient load handling.
- Capacity: 10,000 lbs
- Material: 100% Aluminum
- Surface: Raised-diamond tread plate
- Curbs: Welded aluminum safety curbs
- Edges: Beveled for smooth transitions
- Leg Positioning: Uneven locking legs, 12" from the edge
- Bend Angle: 11 degrees, 9" from the edge
- Compliance: OSHA
MODEL = BTA - (capacity)(width)(length)
| Model No. | Model No. | Height Difference: 8°/17% | Height Difference: 11°/19% | Weight | Size | Price | Qty |
|---|---|---|---|---|---|---|---|
| 102459 | BTA-10007866 | 8" | 11" | 288 lbs. | 78"W x 66"L x 15.625"H |
$4,507.00
|
|
| 102460 | BTA-10007872 | 8-1/2" | 12" | 299 lbs. | 78"W x 72"L x 16.625"H |
$4,612.50
|
|
| 102461 | BTA-10008442 | 5" | 6" | 204 lbs. | 84"W x 42"L x 11.75"H |
$2,333.90
$1,482.00
|
|
| 102462 | BTA-10008466 | 8" | 11" | 258 lbs. | 84"W x 66"L x 15.625"H |
$3,938.00
|
|
| 64834 | BTA-10005448 | 5-1/2" | 7" | 152 lbs. | 54"W x 48"L x 11.75"H |
$971.50
|
|
| 64864 | BTA-10006036 | 4" | 5" | 123 lbs. | 60"W x 36"L x 11.75"H |
$1,097.90
$898.96
|
|
| 65964 | BTA-10006078 | 9" | 13" | 264 lbs. | 60"W x 78"L x 18.7188"H |
$2,375.94
$1,948.97
|
|
| 66073 | BTA-10006072 | 8-1/2" | 12" | 251 lbs. | 60"W x 72"L x 17.8125"H |
$2,171.92
$1,788.97
|
|
| 66112 | BTA-10005472 | 8-1/2" | 12" | 177 lbs. | 54"W x 72"L x 16.75"H |
$1,529.00
|
|
| 66158 | BTA-10006048 | 5-1/2" | 7" | 173 lbs. | 60"W x 48"L x 12.25"H |
$1,512.90
$1,244.97
|
|
| 66184 | BTA-10006060 | 7" | 10" | 197 lbs. | 60"W x 59.8125"L x 16.8125"H |
$1,955.90
$1,608.97
|
|
| 66211 | BTA-10006630 | 3" | 4" | 127 lbs. | 66"W x 30"L x 11.75"H |
$889.00
|
|
| 66275 | BTA-10005460 | 7" | 10" | 165 lbs. | 54"W x 60"L x 14.75"H |
$1,355.00
|
|
| 66751 | BTA-10007236 | 4" | 5" | 161 lbs. | 72"W x 36"L x 11.75"H |
$1,389.85
$1,138.97
|
|
| 66977 | BTA-10006672 | 8-1/2" | 12" | 262 lbs. | 66"W x 72"L x 16.75"H |
$3,289.89
|
|
| 67097 | BTA-10006666 | 8" | 11" | 255 lbs. | 66"W x 66"L x 15.75"H |
$2,329.00
|
|
| 67265 | BTA-10006654 | 6" | 8-1/2" | 215 lbs. | 66"W x 54"L x 13.75"H |
$1,601.02
|
|
| 67288 | BTA-10006642 | 5" | 6" | 177 lbs. | 66"W x 42"L x 11.75"H |
$1,179.00
|
|
| 67366 | BTA-10007842 | 5" | 6" | 189 lbs. | 78"W x 42"L x 11.75"H |
$1,367.40
|
|
| 67556 | BTA-10007272 | 8-1/2" | 12" | 319 lbs. | 72"W x 72"L x 16.75"H |
$4,439.00
|
|
| 67689 | BTA-10007260 | 7" | 10" | 247 lbs. | 72"W x 60"L x 16.3125"H |
$2,182.96
$1,798.97
|
|
| 67905 | BTA-10007248 | 5-1/2" | 7" | 189 lbs. | 72"W x 48"L x 11.75"H |
$1,654.89
$1,358.97
|
|
| 67985 | BTA-10007860 | 7" | 10" | 276 lbs. | 78"W x 60"L x 16.75"H |
$2,333.90
$1,918.97
|
|
| 68321 | BTA-10007266 | 8" | 11" | 311 lbs. | 72"W x 66"L x 15.75"H |
$3,896.00
|
|
| 68593 | BTA-10007854 | 6" | 8-1/2" | 245 lbs. | 78"W x 54"L x 13.75"H |
$1,765.00
|
|
| 68624 | BTA-10007254 | 6" | 8-1/2" | 199 lbs. | 72"W x 54"L x 13.75"H |
$1,649.00
|
