Unique Nesting Boxes

Manufacturer: Bayhead

F.O.B. East Coast Warehouse

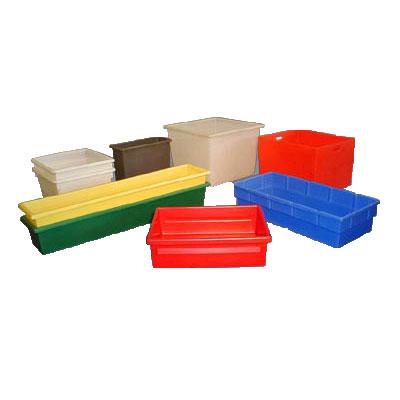

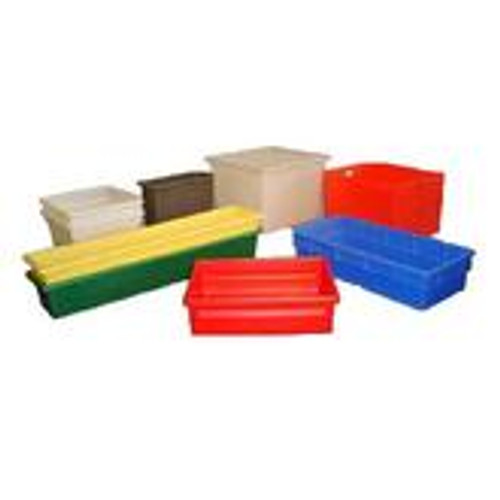

Bayhead Unique Nesting Boxes are rotationally molded nesting boxes with special shapes or molded features that provide additional benefits as noted in the special features.

Features:

  • "Unique Shaped" nesting boxes are designed to fit in unconventional applications.
  • Custom sizes are available - call us for details!
If you need a large quantity of this product, call us at 1-800-338-1382 for additional bulk discounts!
  • Model Info

11 Models Available for Unique Nesting Boxes

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Special Features Outside Top Dimensions Inside Top Dimensions Inside Bottom Dimensions Depth Nest Percentage Weight Price Ea. Qty
BC-3616 Huge capacity with molded ribs and optional lid 38.5" x 18" 36.5" x 16" 36" x 15.5" 9" 50% 9 lbs. $66.24
BC-4721 Huge capacity with molded ribs and optional lid 48.5" x 23" 46" x 20" 45" x 19.5" 13.5" 50% 20 lbs. $86.25
KW-1 Extra long box and optional lid available 54.5" x 11.5" 52" x 9.5" 51.25" x 8" 8" 90% 10 lbs. $57.51
KW-2 Longest box with optional lid available 64.5" x 12" 62" x 9" 61" x 8" 8" 90% 11.5 lbs $74.98
KW-3 Includes lid 42" x 15" 40" x 13" 39" x 11.5" 8" 90% 13 lbs. $64.40
PE-21 Strong taper for full nesting with rolled rim 22" x 9" 19.5" x 7" 17.5" x 4.5" 10" 90% 5 lbs. $31.24
DD-24 Molded ribs on bottom for rigidity 24.5" x 18" 23" x 16.5" 21.5" x 16" 5.5" 85% 7 lbs. $43.76
WB-25 Molded nesting stops and textured bottom 27.5" x 20.5" 25.75" x 19" 25" x 18.25" 7.5" 50% 8 lbs. 43.75
CR-11 Square shape with molded nesting stops 22" x 22" 19" x 19" 17" x 16.5" 11" 80% 7 lbs. $46.24
T-20 Square shape with ribs on 2 sides and no rim 21.5" x 21.5" 21" x 21" 20" x 18.5" 20" 90% 10 lbs. $37.51
AT-6 Square shape and return rim 24" x 24" 23" x 23" 21" x 21" 6" 95% 6 lbs. $32.51
