Steel Wheel Risers

Steel Wheel Risers

Manufacturer: Vestil

Volume Discounts Apply
FOB: Midwest Warehouse
Wheel Risers are Priced and Sold Each

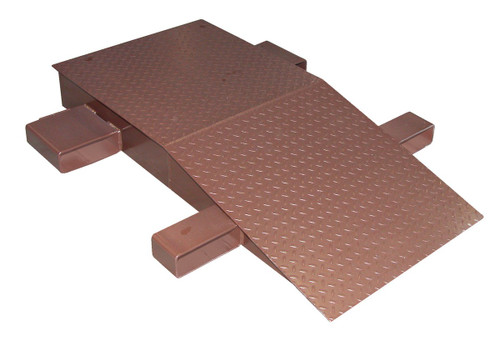

The Steel Wheel Riser is equipped with fork slots for ease in fork truck transporting. Ramps may be stacked for compact storage when not in use. Fork pockets are 7-1/2" wide by 2-1/2" high usable. These fork pockets add approximately 15" to the overall width of the riser. Wheel Risers are designed to raise the trailer for loading and unloading to facilitate compliance with OSHA/ANSI B56.1 part 3 sec 7 requirements for maximum grade of ascending or descending loaded fork trucks. Made of heavy-duty welded steel construction. Uniform capacity per pair is 40,000 lbs. (Sold Each). (1/4" thick material).

Model Info

32 Models Available for Steel Wheel Risers

Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No.	Width	Height	Overall Length	Level Length	Weight	Price Ea.
SWR-18-6-48	18"	6-1/4"	48"	24"	233 lbs.	$311.01
SWR-18-6-60	18"	6-1/4"	60"	36"	255 lbs.	$362.00
SWR-18-6-72	18"	6-1/4"	72"	48"	296 lbs.	$409.01
SWR-18-6-84	18"	6-1/4"	84"	60"	353 lbs.	$444.00
SWR-18-8-60	18"	8-1/4"	60"	28"	324 lbs.	$383.00
SWR-18-8-72	18"	8-1/4"	72"	40"	347 lbs.	$421.01
SWR-18-8-84	18"	8-1/4"	84"	52"	388 lbs.	$468.00
SWR-18-8-96	18"	8-1/4"	96"	64"	445 lbs.	$529.01
SWR-18-10-60	18"	10-1/4"	60"	20"	237 lbs.	$397.00
SWR-18-10-72	18"	10-1/4"	72"	32"	300 lbs.	$443.01
SWR-18-10-84	18"	10-1/4"	84"	44"	346 lbs.	$490.00
SWR-18-10-96	18"	10-1/4"	96"	56"	392 lbs.	$562.00
SWR-18-12-72	18"	12-1/4"	72"	24"	357 lbs.	$457.00
SWR-18-12-84	18"	12-1/4"	84"	36"	366 lbs.	$508.00
SWR-18-12-96	18"	12-1/4"	96"	48"	399 lbs.	$601.00
SWR-18-12-108	18"	12-1/4"	108"	60"	467 lbs.	$664.00
SWR-24-6-48	24"	6-1/4"	48"	24"	218 lbs.	$333.01
SWR-24-6-60	24"	6-1/4"	60"	36"	266 lbs.	$404.00
SWR-24-6-72	24"	6-1/4"	72"	48"	310 lbs.	$448.00
SWR-24-6-84	24"	6-1/4"	84"	60"	363 lbs.	$503.01
SWR-24-8-60	24"	8-1/4"	60"	28"	271 lbs.	$419.01
SWR-24-8-72	24"	8-1/4"	72"	40"	334 lbs.	$467.00
SWR-24-8-84	24"	8-1/4"	84"	52"	398 lbs.	$533.01
SWR-24-8-96	24"	8-1/4"	96"	64"	416 lbs.	$587.00
SWR-24-10-60	24"	10-1/4"	60"	20"	330 lbs.	$430.00
SWR-24-10-72	24"	10-1/4"	72"	32"	361 lbs.	$501.00
SWR-24-10-84	24"	10-1/4"	84"	44"	448 lbs.	$548.00
SWR-24-10-96	24"	10-1/4"	96"	56"	486 lbs.	$638.00
SWR-24-12-72	24"	12-1/4"	72"	24"	377 lbs.	$521.01
SWR-24-12-84	24"	12-1/4"	84"	36"	396 lbs.	$582.00
SWR-24-12-96	24"	12-1/4"	96"	48"	429 lbs.	$680.00
SWR-24-12-108	24"	12-1/4"	108"	60"	524 lbs.	$734.00

Difference between Cart and Quote

2 Options Available for Steel Wheel Risers

Option:Portable Wheel Riser Caddy

FOB Midwest Warehouse

Easily move steel or aluminum risers out of your way with these handy caddies. Simple to use – just snap the roller into the riser.

R-CAD-18 Portable Wheelriser Caddy
• For 18" wide wheel risers.
• Includes one caddy and one pair of brackets.
• Overall dimensions: 65"Hx31-1/4"Wx10-1/4"L.
• Uses two 10-1/4"x3-1/2" pneumatic wheels (wheels not included).

R-CAD-24 Portable Wheel Riser Caddy
• For 24" wide wheel risers.
• Includes one caddy and one pair of brackets.
• Overall dimensions: 65"Hx37-1/4"Wx10-1/4"L.
• Uses two 10-1/4"x3-1/2" pneumatic wheels (wheels not included).

R-CAD-KIT Extra Brackets & Hardware for Aluminum Wheel Risers
• Includes one pair of bolt-on brackets and hardware.
• Yellow powder-coat finish.
• Overall dimensions: 2-1/2"Hx4-1/2"Wx1-5/8"D.

R-CAD-KIT Extra Brackets & Hardware for Steel Wheel Risers
• Includes one pair of weld-on brackets and hardware.
• Factory-installed.
• Available only in lengths up to 72".
• Yellow powder-coat finish.
• Overall dimensions: 2-1/2"Hx4-1/2"Wx1-5/8"D.

Model No.	Description	Price Ea.
R-CAD-18	Portable wheel riser caddy for 18" wide units (2 pairs of brackets)	$138.00
R-CAD-24	Portable wheel riser caddy for 24" wide units (2 pairs of brackets)	$138.00
R-CAD-KIT	Pair of bolt-on brackets and hardware	$63.00

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Option:Options for Steel Wheel Risers

FOB Midwest Warehouse

SWR-CPL Central Pickup Loop
Connects two wheel risers.
Allows fork trucks to easily position and move two risers as one.
Factory-installed.
Overall width: 102".
Additional weight: 186 lbs.

SWR-ABRK Anchor Brackets
Brackets (four per riser) to bolt riser to ground.
Factory-installed.

Model No.	Description	Weight	Price Ea.
SWR-ABRK	Anchor brackets (4 per riser) to bolt riser to ground	Call	$41.00
SWR-CPL	Central pickup loop, factory installed	98 lbs.	$308.00
SWR-CPL-SM	Central pickup loop, factory installed, for models SWR-18-6-48 and SWR-24-6-48	108 lbs.	$308.00
