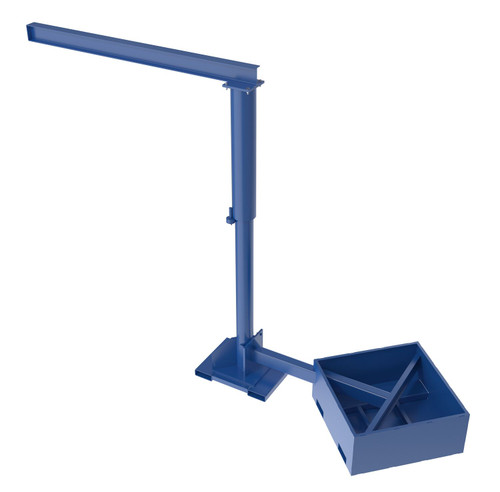

Vestil JIB-CBX-25-8-10 Portable Offset Jib Cranes with Empty Base

Portable Offset Jib Cranes

Manufacturer: Vestil
$2,449.00
(No reviews yet) Write a Review

FOB: Midwest Warehouse

Offset base design allows for larger usable work area beneath I-beam. Allows for easy transportation of jib crane with fork truck.

  • Fixed length I-beam will pivot 360° for complete access.
  • Empty base models include instructions for proper filling with concrete.
  • Offset base size is 42-3/16" W x 42-3/16" L x 18" H or 36" H.
  • Built-in fork tubes, measuring 7-1/2" W x 2-1/2" H usable on 24" centers, for transportation with fork truck.
  • Steel construction with blue painted finish.
  • Units ship knocked down.
  • Not for use as a fork truck attachment.
  • 10' under I-beam.

Additional Empty Offset Steel Bases also available – please see Options tab for details.

Model No. Model No. Uniform Capacity I-Beam Length/Height I-Beam Flange Width Base Height Weight Description Price Qty
55220 JIB-CBX-50-8-10 500 lbs. 96" / 6" 4" 18" 1169 lbs. Empty base
$4,691.88
$3,615.00
55335 JIB-CBX-25-10-10 250 lbs. 120" / 6" 4" 18" 1193 lbs. Empty base
$4,745.87
$3,664.00
55831 JIB-CBX-25-8-10 250 lbs. 96" / 6" 4" 18" 1240 lbs. Empty base
$3,124.97
$2,449.00
55897 JIB-CBX-25-8-10-BC 250 lbs. 96" / 6" 4" 18" 3527 lbs. Concrete filled base
$3,435.86
$2,459.00
56189 JIB-CBX-50-10-10 500 lbs. 120" / 10-1/8" 4" 36" 1446 lbs. Empty base
$6,161.86
$4,755.00
56203 JIB-CBX-50-8-10-BC 500 lbs. 96" / 6" 4" 18" 3527 lbs. Concrete filled base
$4,978.86
$3,839.00
56709 JIB-CBX-25-10-10-BC 250 lbs. 120" / 6" 4" 18" 3570 lbs. Concrete filled base
$5,073.94
$3,913.00
57236 JIB-CBX-50-10-10-BC 500 lbs. 120" / 10-1/8" 4" 36" 6268 lbs. Concrete filled base
$6,715.93
$5,185.00
!
