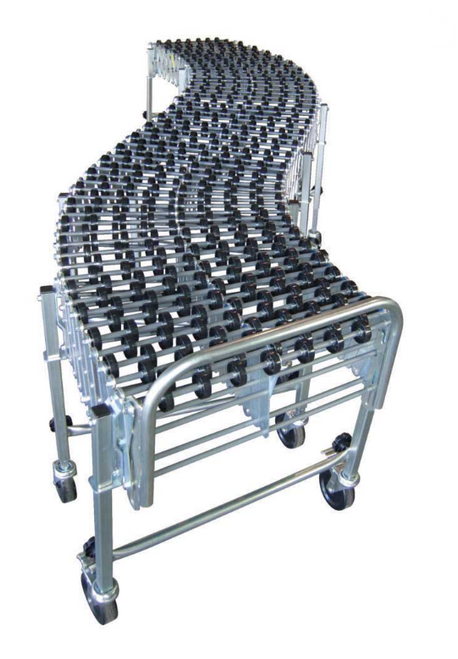

NestaFlex 226 Series Expandable Portable Conveyors with 24" Wide Black Polymer Wheels

Manufacturer: FMH Conveyors

F.O.B. Midwest Warehouse

  • When fully extended, there is a 4' space between each leg and 5-1/4" center to center of each axle
  • 1-1/4" zinc-plated square steel legs with welded cross members
  • 5" swivel anti-static rubber casters with brakes
  • Retractable package stop also serves as a handle
  • 226-lbs. capacity per linear foot
  • Bends around a 21" radius
  • 2" diameter wheels - Black polymer
  • 11 gauge steel frame
  • Made in the USA


Three Wheel Types:

  • Red nylon - with nylon bushing for general applications and low-to-moderate volume.
  • Black polymer - with steel ball bearings for light-to medium-weight packages and ideal for long run applications.
  • Steel - with steel ball bearings for heavy-duty applications and high impacts.

Note: Lower height version available upon request.



14 Models Available for
NestaFlex 226 Series Expandable Portable Conveyors with 24" Wide Black Polymer Wheels

*Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart
If you are interested in these products, add them to your quote list by clicking the red button below

Model No. Width Height Overall Length Leg Set Quantity Wheel Quantity per Axle Skate Wheel Type Weight Price Ea. Qty
22624008P 24" 28"-44" 2'4" - 8'11" 3 8 Polymer 175 lbs $733.00
22624012P 24" 28"-44" 3'3" - 12'10" 4 8 Polymer 230 lbs $950.00
22624016P 24" 28"-44" 4'3" - 16'9" 5 8 Polymer 295 lbs $1199.00
22624020P 24" 28"-44" 5'2" - 20'9" 6 8 Polymer 350 lbs $1486.00
22624024P 24" 28"-44" 6'2" - 24'8" 7 8 Polymer 400 lbs $1618.00
22624028P 24" 28"-44" 7'1" - 28'7" 8 8 Polymer 495 lbs $2019.00
22624032P 24" 28"-44" 8'1" - 32'6" 9 8 Polymer 545 lbs $2276.00
22624036P 24" 28"-44" 9'0" - 36'6" 10 8 Polymer 595 lbs $2495.00
22624040P 24" 28"-44" 10'0" - 40'5" 11 8 Polymer 665 lbs $2709.00
22624044P 24" 28"-44" 10'11" - 44'4" 12 8 Polymer 715 lbs $2962.00
22624048P 24" 28"-44" 11'11" - 48'3" 13 8 Polymer 790 lbs $3173.00
22624052P 24" 28"-44" 12'10" - 52'3" 14 8 Polymer 860 lbs $3387.00
22624056P 24" 28"-44" 13'10" - 56'2" 15 8 Polymer 910 lbs $3714.00
22624060P 24" 28"-44" 14'9" - 60'1" 16 8 Polymer 965 lbs $3915.00
