Drum Cones control dispensing of dry material from your drum.
Replace your drum lid with a properly sized Drum Cone to control your dispensing operation by turning your drum into a precise pouring instrument. Morse Drum Cones and Clamp Collars are available in 16-gauge carbon steel or type 304 stainless steel.
Features:
- Control pouring from a drum and greatly reduce dust when dispensing dry materials.
- Quickly start and stop dispensing with slide gate or iris valve at 6" discharge opening.
- Extend the reach of pour.

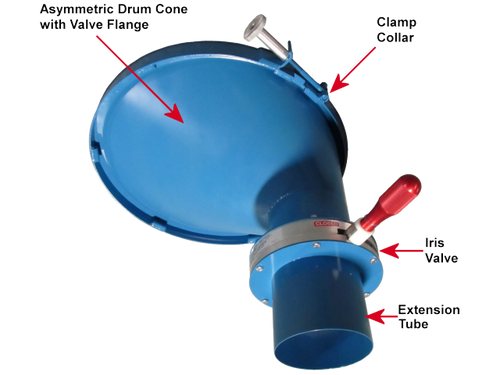

- 45 or 60 degree angle drum cone, or asymmetric drum cone with off center discharge.
- Drum cones for steel drum or fiber drum.
- Drum cones for various drum diameters from 15-7/8" to 23-3/8"
Attach a Morse drum cone with a valve to your drum to start and stop product flow, and extend the reach of the pour by up to 15.5". This can be critical when you need to reach beyond obstructions at the receiving container.
| Model No. | Model No. | Opening | Angle | Weight | Size | Price | Qty |
|---|---|---|---|---|---|---|---|
| 34655 | 5-VF-45-15.5 | Valve Flange | 45 Degrees | 35 lbs. | 15.5 |
$560.00
$479.10
|
|
| 35111 | 5-VF-45-17 | Valve Flange | 45 Degrees | 35 lbs. | 17 |
$560.00
$465.10
|
|
| 35523 | 5-VF-45-18.5 | Valve Flange | 45 Degrees | 35 lbs. | 18.5 |
$560.00
$479.10
|
|
| 36309 | 5-VF-45-19 | Valve Flange | 45 Degrees | 35 lbs. | 19 |
$560.00
$465.10
|
|
| 36675 | 5-VF-45-20 | Valve Flange | 45 Degrees | 35 lbs. | 20 |
$560.00
$465.10
|
|
| 37066 | 5-VF-45-21.5 | Valve Flange | 45 Degrees | 35 lbs. | 21.5 |
$560.00
$479.10
|
|
| 37433 | 5-VF-45-23 | Valve Flange | 45 Degrees | 35 lbs. | 23 |
$560.00
$465.10
|
|
| 36273 | 5-VF-60-15.5 | Valve Flange | 60 Degrees | 35 lbs. | 15.5 |
$560.00
$479.10
|
|
| 36686 | 5-VF-60-17 | Valve Flange | 60 Degrees | 35 lbs. | 17 |
$560.00
$465.10
|
|
| 37050 | 5-VF-60-18.5 | Valve Flange | 60 Degrees | 35 lbs. | 18.5 |
$560.00
$479.10
|
|
| 37838 | 5-VF-60-19 | Valve Flange | 60 Degrees | 35 lbs. | 19 |
$560.00
$465.10
|
|
| 38201 | 5-VF-60-20 | Valve Flange | 60 Degrees | 35 lbs. | 20 |
$560.00
$465.10
|
|
| 38419 | 5-VF-60-21.5 | Valve Flange | 60 Degrees | 35 lbs. | 21.5 |
$560.00
$479.10
|
|
| 38794 | 5-VF-60-23 | Valve Flange | 60 Degrees | 35 lbs. | 23 |
$560.00
$465.10
|
|
| 37535 | 5SS-VF-45-15.5 | Stainless Steel Drum Cones with Valve Flange | 45 Degrees | 35 lbs. | 15.5 |
$1,450.00
$1,255.10
|
|
| 37885 | 5SS-VF-45-17 | Stainless Steel Drum Cones with Valve Flange | 45 Degrees | 35 lbs. | 17 |
$1,450.00
$1,205.10
|
|
| 38184 | 5SS-VF-45-18.5 | Stainless Steel Drum Cones with Valve Flange | 45 Degrees | 35 lbs. | 18.5 |
$1,450.00
$1,255.10
|
|
| 38775 | 5SS-VF-45-19 | Stainless Steel Drum Cones with Valve Flange | 45 Degrees | 35 lbs. | 19 |
$1,450.00
$1,205.10
|
|
| 39194 | 5SS-VF-45-20 | Stainless Steel Drum Cones with Valve Flange | 45 Degrees | 35 lbs. | 20 |
$1,450.00
$1,205.10
|
|
| 39400 | 5SS-VF-45-21.5 | Stainless Steel Drum Cones with Valve Flange | 45 Degrees | 35 lbs. | 21.5 |
$1,450.00
$1,255.10
|
|
| 39795 | 5SS-VF-45-23 | Stainless Steel Drum Cones with Valve Flange | 45 Degrees | 35 lbs. | 23 |
$1,450.00
$1,205.10
|
|
| 40295 | 5SS-VF-60-15.5 | Stainless Steel Drum Cones with Valve Flange | 60 Degrees | 35 lbs. | 15.5 |
$1,450.00
$1,255.10
|
|
| 40488 | 5SS-VF-60-17 | Stainless Steel Drum Cones with Valve Flange | 60 Degrees | 35 lbs. | 17 |
$1,450.00
$1,205.10
|
|
| 39456 | 5SS-VF-60-18.5 | Stainless Steel Drum Cones with Valve Flange | 60 Degrees | 35 lbs. | 18.5 |
$1,450.00
$1,255.10
|
|
| 40127 | 5SS-VF-60-19 | Stainless Steel Drum Cones with Valve Flange | 60 Degrees | 35 lbs. | 19 |
$1,450.00
$1,205.10
|
|
| 40656 | 5SS-VF-60-20 | Stainless Steel Drum Cones with Valve Flange | 60 Degrees | 35 lbs. | 20 |
$1,450.00
$1,205.10
|
|
| 40821 | 5SS-VF-60-21.5 | Stainless Steel Drum Cones with Valve Flange | 60 Degrees | 35 lbs. | 21.5 |
$1,450.00
$1,255.10
|
|
| 41103 | 5SS-VF-60-23 | Stainless Steel Drum Cones with Valve Flange | 60 Degrees | 35 lbs. | 23 |
$1,450.00
$1,205.10
|
|
| 41017 | 5-VF-90-15.5 | Valve Flange | Asymmetric | 30 lbs. | 15.5 |
$1,400.00
$1,209.10
|
|
| 41291 | 5-VF-90-17 | Valve Flange | Asymmetric | 30 lbs. | 17 |
$1,400.00
$1,165.10
|
|
| 41510 | 5-VF-90-18.5 | Valve Flange | Asymmetric | 30 lbs. | 18.5 |
$1,400.00
$1,209.10
|
|
| 41953 | 5-VF-90-20 | Valve Flange | Asymmetric | 30 lbs. | 20 |
$1,400.00
$1,165.10
|
|
| 42277 | 5-VF-90-19 | Valve Flange | Asymmetric | 30 lbs. | 19 |
$1,400.00
$1,165.10
|
|
| 42909 | 5-VF-90-21.5 | Valve Flange | Asymmetric | 30 lbs. | 21.5 |
$1,400.00
$1,209.10
|
|
| 41707 | 5-VF-90-23 | Valve Flange | Asymmetric | 30 lbs. | 23 |
$1,450.00
$1,205.10
|
|
| 41933 | 5SS-VF-90-15.5 | Stainless Steel Drum Cones with Valve Flange | Asymmetric | 30 lbs. | 15.5 |
$1,950.00
$1,685.10
|
|
| 42138 | 5SS-VF-90-17 | Stainless Steel Drum Cones with Valve Flange | Asymmetric | 30 lbs. | 17 |
$1,950.00
$1,625.10
|
|
| 42361 | 5SS-VF-90-18.5 | Stainless Steel Drum Cones with Valve Flange | Asymmetric | 30 lbs. | 18.5 |
$1,950.00
$1,685.10
|
|
| 42675 | 5SS-VF-90-19 | Stainless Steel Drum Cones with Valve Flange | Asymmetric | 30 lbs. | 19 |
$1,950.00
$1,625.10
|
|
| 43053 | 5SS-VF-90-21.5 | Stainless Steel Drum Cones with Valve Flange | Asymmetric | 30 lbs. | 21.5 |
$1,950.00
$1,685.10
|
|
| 43428 | 5SS-VF-90-20 | Stainless Steel Drum Cones with Valve Flange | Asymmetric | 30 lbs. | 20 |
$1,950.00
$1,625.10
|
|
| 43822 | 5SS-VF-90-23 | Stainless Steel Drum Cones with Valve Flange | Asymmetric | 30 lbs. | 23 |
$1,950.00
$1,625.10
|
!
