Medium Duty Accordion Wheel Conveyors 24" Width Red Nylon

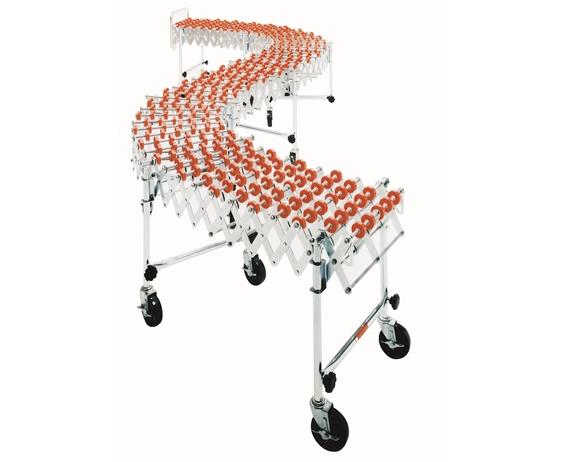

Medium Duty Accordion Wheel Conveyors - 24 Inch Widths - Red Nylon Wheels

Supplier: Material Flow

FOB: Midwest Warehouse

Flexible conveyors conform to the various shapes necessary for ease of product handling with lengths available up to 60 feet.

Specifications:

Red nylon wheels
8 skate wheels/axle
Axle centers: 5-1/4"
Load capacity: 226 lbs. per lineal ft. when fully extended
Standard height adjustment: 28" - 44"
1 box stop and 1 set of hook couplers per unit
Casters: 5" x 1-1/2" swivel with foot brake

Model Info

14 Models for Medium Duty Accordion Wheel Conveyors - 24 Inch Widths - Red Nylon Wheels

Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No.	Length Contracted / Extended at Maximum	Leg Sets Per Unit	Weight	Price Ea.
224-08-N	2' 4" - 8' 11"	3	220 lbs.	$1353.00
224-12-N	3' 3" - 12' 10"	4	280 lbs.	$1775.00
224-16-N	4' 3" - 16' 9"	5	360 lbs.	$2240.00
224-20-N	5' 2" - 20' 9"	6	440 lbs.	$2633.00
224-24-N	6' 2" - 24' 8"	7	500 lbs.	$3042.00
224-28-N	7' 1" - 28' 7"	8	610 lbs.	$3595.00
224-32-N	8' 1" - 32' 6"	9	680 lbs.	$3990.00
224-36-N	9' 0" - 36' 6"	10	750 lbs.	$4396.00
224-40-N	10' 0" - 40' 5"	11	830 lbs.	$4766.00
224-44-N	10' 11" - 44' 4"	12	900 lbs.	$5165.00
224-48-N	11' 11" - 48' 3"	13	990 lbs.	$5709.00
224-52-N	12' 10" - 52' 3"	14	1080 lbs.	$6151.00
224-56-N	13' 10" - 56' 2"	15	1140 lbs.	$6410.00
224-60-N	14' 9" - 60' 1"	16	1210 lbs.	$6792.00
