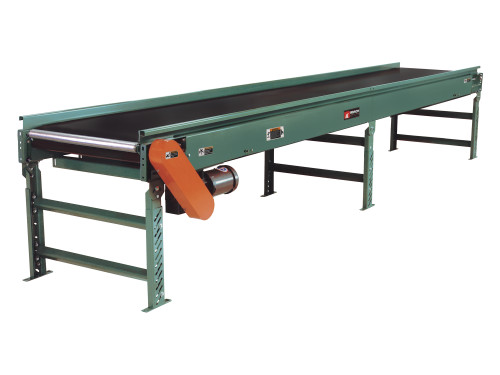

725TB Trough Bed Belt Conveyor - 12 Inch Belt Width

FOB: Arkansas Warehouse

Conveyor supports pictured are optional and not included in the price!

The 725TB Trough Bed Belt Conveyor with 12" Inch Belt Width is perfect for efficiently handling a variety of materials, including chips, slugs, scrap wood, paper waste, boxes, packages, and cartons. Its unique troughed frame design features built-in guard rails, making it ideal for numerous trash conveyor applications. This robust conveyor system ensures safe and organized material transportation, optimizing your workflow and enhancing productivity.

Key Features:

• Versatile Material Handling: Ideal for chips, slugs, scrap wood, paper waste, boxes, packages, and cartons.
• Durable Belting: Equipped with PVC-120 black belt for reliable performance.
• Strong Drive Pulley: Available in 4" diameter with 1-3/16" diameter shaft or 8" diameter with 1-7/16" diameter shaft, both machine crowned and fully lagged for maximum durability.
• Reliable Tail Pulley: 4" diameter, machine crowned with 1-3/16" diameter shaft.
• Efficient End Drive: Allows one-direction operation, with optional center drive for reversible use.
• Precise Take-Up: Screw type unit at tail pulley provides 12" belt take-up for optimal tension.
• Safety Pop-Out Rollers: Standard on both ends with 1.9" diameter x 16 gauge steel rollers.
• Heavy-Duty Bearings: Precision, heavy-duty, lubricated ball bearings with cast iron housings.
• Robust Bed: 7" deep x 12 gauge box type bed with bed pan braces, featuring 2-1/2" deep x 12 gauge formed trough for added strength.
• Powerful Motor Drive: 1/2 HP Super "E" motor (230/460/3) ensures efficient operation.
• Sturdy Roller Chain: Drive pulley driven by No. 50 roller chain for 1-1/2 HP or less, and No. 60 chain on larger drives with chain take-up provided on motor base.
• Adjustable Return Rollers: 1.9" diameter, 16 gauge steel rollers for easy adjustment.
• Consistent Belt Speed: Operates at a constant speed of 60 FPM.
• Optional Electrical Controls: Customizable to meet your specific needs.
• Various Sizes Available: Multiple sizes available to suit different applications.

All of Roach's pre-engineered line can easily be adapted to special application needs. The basic unit has already been engineered and can often be shipped quickly.
