3530CDLR Heavy Duty Chain Driven Live Roller Conveyors

FOB: Midwest Warehouse

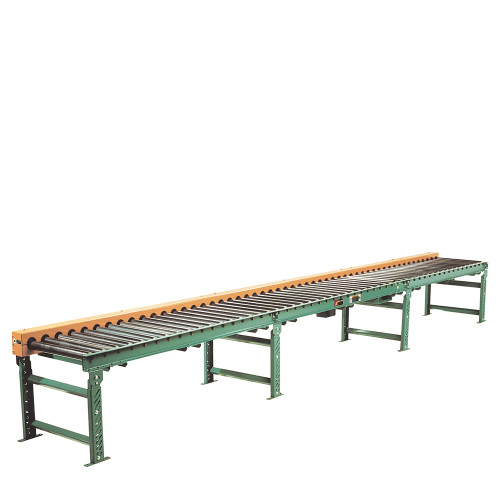

NOTE: Conveyor supports shown are optional.

Roach's 3530CDLR Heavy Duty Chain Driven Live Roller Conveyors are ideal for transporting very heavy unit loads. This heavy duty chain driven live roller is designed with heavy .300 wall steel rollers, larger size roller chain and heavy duty structural frame and supports for applications demanding ultra-durable construction for longevity and durability.

Specifications:

• Tread Rollers: 3-1/2" dia. x .300 wall steel, model 3530S with sprockets
• Chain Guard: Chain drive is completely enclosed along the entire length of the conveyor.
• Center Drive: Reversible drive either side mounted or underneath mounted (specify). Main drive roller is supported by precision, heavy duty, lubricated, ball bearing units.
• Bearings: Precision ABEC bearings.
• Bed Lengths (6" RC, #60 Chain and 12" RC, #80 Chain): Intermediate bed section lengths 3'-0", 4'-0", 5'-0", 6'-0", 7'-0", 8'-0", 9'-0" and 10'-0" increments. Minimum overall conveyor length with drive: 5'-0". Maximum overall conveyor length: 80'-0".
• Bed Lengths (7-1/2" RC, #80 Chain): Intermediate bed section lengths 3'-1-1/2", 3'-9", 4'-4-1/2", 5'-0", 5'-7-1/2", 6'-3", 6'-10-1/2", 7'-6", 8'-1-1/2", 8'-9", 9'-4-1/2" and 10'-0". Minimum overall conveyor length with drive: 5'-0". Maximum overall conveyor length: 80'-0".
• Roller Centers: 6" with No. 60 chain; 7-1/2" and 12" with No. 80 chain.
• Chain Drive: Roller to roller with No. 60 or No. 80 roller chain.
• Speed: 35 FPM constant.
• Bed: 6" at 8.2 lbs. and 8" at 11.5 lbs. structural steel frame. Bed sections attached with couplings and floor supports.
• Motor Drive: 3/4 HP, 230/460/3, 60 cycle, TEFC right angle gear motor.
• Roller Capacity: 2,500 lbs. per roller.
• Electrical Controls: Optional.

All of Roach's pre-engineered line can easily be adapted to special application needs. The basic unit has already been engineered and can often be shipped quickly.
