254S Gravity Curve

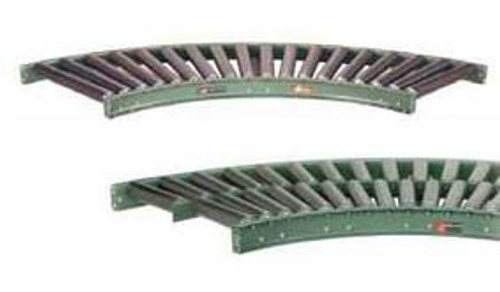

254S Gravity Conveyor Curves - 2.5 Inch Dia. x 14 Ga. Rollers

Manufacturer: Roach Conveyors
$373.89
(No reviews yet) Write a Review

Volume Discounts Apply
FOB: Midwest Warehouse
8 Week Lead Time

Specifications:

  • Rollers: 2-1/2" x 14 gauge steel tubing, model 254S, with smooth swaged ends.
  • Frames: Formed steel painted channel 3-1/2" x 1-1/2" x 10 gauge set high. 4-1/2" x 1-1/2" x 10 gauge set low.
  • Roller Capacity: 290 lbs. per roller.
  • Bearings: Integral plain ball bearings, zinc plated, grease packed.
  • Frame Capacity: 1,300 lbs. maximum distributed live load per 10' section with supports at 10' centers; 3,200 lbs. at 5' centers.
  • Couplings: Butt type.
  • Axles: 7/16" hex shaft, spring loaded.

Optional structural steel channels, special lengths, widths and height settings available.

WARNING: To prevent pinch points that exist when gravity conveyors are permanently attached to power conveyors, use connector brackets with safety pop-out rollers.

All of Roach's pre-engineered line can easily be adapted to special application needs.

Model No. Model No. Description Between Frames Inside Radius Roller Quantity Roller Pattern Weight Price Qty
29712 254SC-15-H-90 90 Degree Curve 15" 32-1/2" 18 Single 246 lbs.
$720.78
29844 254SC-13-H-90 90 Degree Curve 13" 32-1/2" 18 Single 217 lbs.
$693.20
30186 254SC-15-H-45 45 Degree Curve 15" 32-1/2" 9 Single 134 lbs.
$383.78
30265 254SC-13-H-45 45 Degree Curve 13" 32-1/2" 9 Single 120 lbs.
$373.89
30587 254SC-17-H-90 90 Degree Curve 17" 32-1/2" 18 Single 274 lbs.
$748.39
30605 254SC-21-H-90 90 Degree Curve 21" 32-1/2" 37 Single 331 lbs.
$801.59
30887 254SC-17-H-45 45 Degree Curve 17" 32-1/2" 9 Single 147 lbs.
$392.69
31171 254SC-19-H-90 90 Degree Curve 19" 32-1/2" 18 Single 303 lbs.
$774.09
31351 254SC-21-H-45 45 Degree Curve 21" 32-1/2" 17 Single 175 lbs.
$441.00
31574 254SC-19-H-45 45 Degree Curve 19" 32-1/2" 9 Single 161 lbs.
$412.89
31783 254SC-27-H-90 90 Degree Curve 27" 32-1/2" 37 Double 417 lbs.
$1,249.59
31833 254SC-23-H-90 90 Degree Curve 23" 32-1/2" 37 Double 360 lbs.
$1,204.00
32098 254SC-27-H-45 45 Degree Curve 27" 32-1/2" 17 Double 216 lbs.
$653.09
32226 254SC-23-H-45 45 Degree Curve 23" 32-1/2" 17 Double 188 lbs.
$627.49
32621 254SC-25-H-90 90 Degree Curve 25" 32-1/2" 37 Double 388 lbs.
$1,226.40
32804 254SC-25-H-45 45 Degree Curve 25" 32-1/2" 17 Double 202 lbs.
$641.49
32942 254SC-31-H-90 90 Degree Curve 31" 48" 40 Double 474 lbs.
$1,458.79
33021 254SC-37-H-90 90 Degree Curve 37" 48" 40 Double 560 lbs.
$1,532.40
33432 254SC-31-H-45 45 Degree Curve 31" 48" 20 Double 247 lbs.
$736.28
33516 254SC-37-H-45 45 Degree Curve 37" 48" 20 Double 284 lbs.
$774.89
33760 254SC-33-H-90 90 Degree Curve 33" 48" 40 Double 503 lbs.
$1,505.90
33815 254SC-39-H-90 90 Degree Curve 39" 48" 40 Double 589 lbs.
$1,558.29
34089 254SC-33-H-45 45 Degree Curve 33" 48" 20 Double 257 lbs.
$747.09
34420 254SC-47-H-90 90 Degree Curve 47" 48" 40 Double 703 lbs.
$1,639.70
34605 254SC-39-H-45 45 Degree Curve 39" 48" 20 Double 298 lbs.
$790.28
34668 254SC-47-H-45 45 Degree Curve 47" 48" 20 Double 353 lbs.
$880.49
34972 254SC-51-H-90 90 Degree Curve 51" 48" 40 Double 760 lbs.
$1,679.20
35099 254SC-43-H-90 90 Degree Curve 43" 48" 40 Double 646 lbs.
$1,598.50
35512 254SC-43-H-45 45 Degree Curve 43" 48" 20 Double 325 lbs.
$836.78
35535 254SC-51-H-45 45 Degree Curve 51" 48" 20 Double 380 lbs.
$927.89
!
