251S Structural 2.5 Inch Dia. x 11 Ga. Steel Gravity Roller Conveyor - 9 Inch Between Frames - 4

Roach 251S-9-12-H-10-S

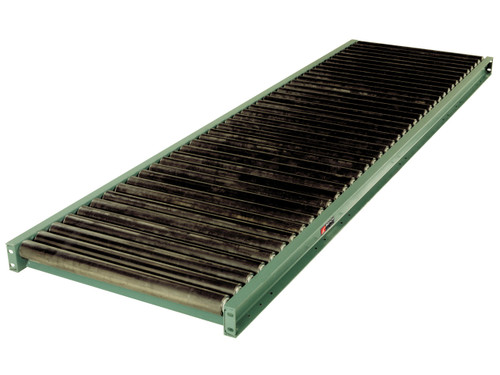

251S Structural 2.5 Inch Dia. x 11 Ga. Steel Gravity Roller Conveyor - 9 Inch Between Frames

FOB: Our Arkansas Warehouse

Built for strength, sized for precision — the Roach 251S Structural Steel Gravity Roller Conveyor with 9" Between Frames delivers reliable, high-capacity performance in tight spaces. Available from Material Flow and manufactured by Roach Conveyor, this conveyor is designed for heavy-duty use in warehouses, manufacturing, and distribution centers.

Its 2-1/2″ diameter, 11-gauge steel rollers and 4″ structural steel frame handle loads up to 540 lbs. per roller, while the narrow 9" frame width offers the perfect fit for compact material handling layouts. With high-strength components and seamless connectivity, the 251S is your go-to conveyor for dependable throughput.

Choose the Roach 251S with 9" BF — a compact powerhouse engineered to keep your operations running smoothly.

• Between Frames (BF): 9 inches

• Roller Size: 2-1/2″ diameter x 11 gauge steel tubing

• Bearings: Flanged type, pressed into straight roller ends

• Axles: 11/16″ hex, spring-loaded

• Frame Construction: 4″ structural steel channels (5.4 lbs./ft.), painted finish

• Roller Capacity: 540 lbs. per roller

• Frame Capacity:

  • 3750 lbs. distributed load per 10′ with 10′ center supports

  • 8000 lbs. distributed load per 10′ with 5′ center supports

• Bearing Type: Heavy-duty, zinc-plated, grease-packed ball bearings

• Coupling Style: Butt type for seamless connection

• Note: Surcharges may apply
