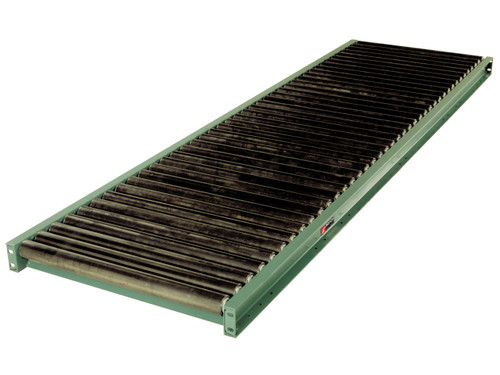

251S Structural 2.5 Inch Dia. x 11 Ga. Steel Gravity Roller Conveyor - 25 Inch Between Frames - 2

251S-25-9-H-10-S

FOB: Our Arkansas Warehouse

Get the strength you need for demanding material handling with the Roach 251S Gravity Conveyor, now available at Material Flow. Built for tough jobs, this conveyor features 2.5″ diameter, 11-gauge steel rollers with flanged bearings, supporting up to 540 lbs. per roller. The structural steel frame can handle up to 8,000 lbs. per 10′ section with supports at 5′ centers, ensuring maximum performance under pressure. With spring-loaded axles, zinc-plated, grease-packed bearings, and butt-type couplings, the Roach 251S is built to last in any warehouse or industrial setting. Trust Roach for durability and dependability.

• Model: 251S

• Roller Diameter: 2-1/2″

• Roller Gauge: 11-gauge steel

• Between Frames (BF): 25"

• Roller Bearings: Flanged type, pressed into straight ends

• Frame Construction: 4″ structural steel channel, 5.4 lbs./ft

• Roller Capacity: 540 lbs. per roller

• Axles: 11/16″ hex shaft, spring-loaded

• Bearings: Heavy-duty, removable, zinc-plated, grease-packed

• Coupling Type: Butt type

• Frame Capacity:

  • 3,750 lbs. (10′ centers)

  • 8,000 lbs. (5′ centers)

• Application: Warehouses, industrial environments, distribution centers

• Shipping: Surcharges may apply
