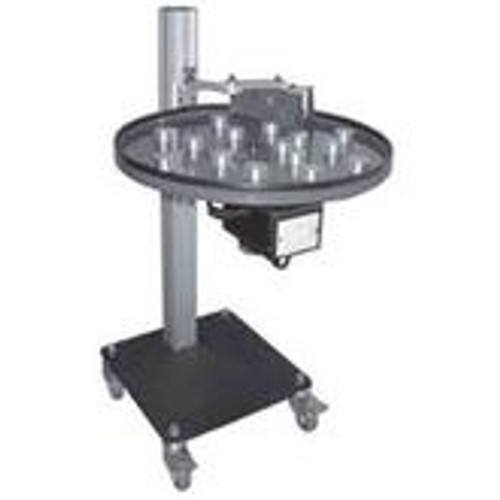

24 Inch Rotary Table Accumulator

FOB: West Coast Warehouse

Mini-Mover Rotary Accumulator Tables (RTAs) were originally designed for the metalworking marketplace to promote unattended machine operation and separation of sensitive parts after machining.

Mini Mover's RTAs are well suited for various applications in assembly and packaging, such as cycle tolerance inspection, surge table on production lines and staging for manual or pick and place case packing.

Features:

• Weight: 95 lbs.
• Table Diameter: 24 inches
• Load Capacity: 100 lbs.
• Table Height (adjustable): 16" to 34"
• Roller Base: 20" square With heavy-duty locking casters
• Part Stop Cushion: Height and angle adjustable
• Diverter Fence: Height and angle adjustable
• Fixed Speed: 1 rpm
• Variable Speed: 1 to 3 rpm

Operation:
Parts are delivered to table via part chute or conveyor. Parts are stopped by in-feed cushion. As table rotates, parts are directed away from part drop area by the diverter fence and accumulate at the table center.
