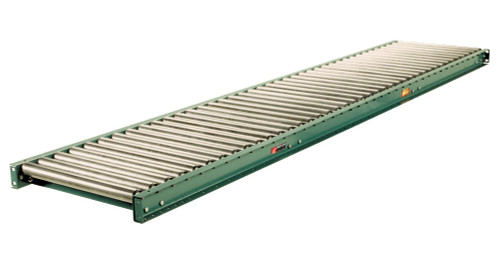

196G Medium Duty Galvanized Roller Gravity Conveyor 12" Roller Length - 13" Between Frame

FOB: Our Arkansas Warehouse

Streamline your warehouse or production line with the Roach Conveyors 196G Medium Duty Gravity Conveyor, available now at Material Flow. Built for reliable performance and long-lasting durability, this conveyor features 1.9" diameter galvanized steel rollers, model 196G, with smooth swaged ends for efficient item transfer. Designed to handle medium-duty loads, the frame supports up to 1300 lbs. distributed over a 10' section—and up to 3200 lbs. with supports at 5' centers.

The robust steel channel frame is available in both set high and set low configurations to meet your operational layout. With integral ball bearings and a spring-loaded hex shaft axle, this conveyor delivers smooth and stable performance even in demanding environments. Optional structural steel frames offer even more durability where needed. Perfect for packaging lines, shipping departments, and assembly areas, the Roach 196G is your go-to solution for dependable gravity flow.

• Roller Dimensions: 1.9" diameter x 16 gauge galvanized steel tubing (Model 196G)

• Roller Ends: Smooth swaged

• Frame (Set High): 3-1/2" x 1-1/2" x 10 gauge formed steel channel

• Frame (Set Low): 4-1/2" x 1-1/2" x 10 gauge formed steel channel

• Bearings: Zinc plated integral plain ball bearings, grease packed

• Axles: 7/16" hex shaft, spring loaded

• Couplings: Butt type

• Frame Capacity:

  • 250 lbs. per roller

  • 1300 lbs. max distributed load per 10' section (supports at 10' centers)

  • 3200 lbs. max at 5' centers

• Optional Frame: 4" @ 5.4 lbs structural steel channel (3/16" roller height variation)

• Surcharges: May apply
