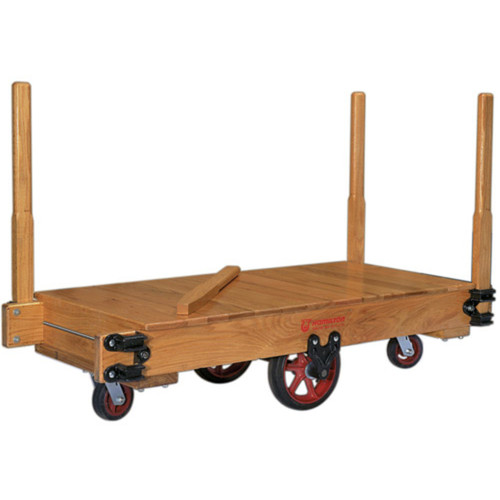

Hamilton Tilt-Type Platform Trucks - Series PW820

Tilt-Type Platform Trucks - Series PW820

Manufacturer: Hamilton Caster
$1,165.00
(No reviews yet) Write a Review
Condition:
New

FOB: Our Ohio Warehouse

Hamilton Casters Tilt-Type Platform Trucks deliver durability and versatility for demanding material handling tasks. Crafted with a sanded and varnished 1" select hardwood deck, reinforced with 2" x 6" side sills and 1-1/4" hardwood cross bolsters, this platform truck is built to withstand heavy loads. Its sturdy steel tie rods, heavy-duty cast stake sockets, and axle brackets ensure maximum stability. Designed with roller bearings and lube fittings in all wheels, it promises smooth and efficient movement. The tilt-type design, complete with swivel casters on each end, enhances maneuverability, making it perfect for warehouses and industrial spaces. Choose from multiple wheel sizes and superstructure styles L and M for optimal performance.  This rugged platform truck is your go-to solution for safe and efficient load handling. Order now from Material Flow!

  • Deck Material: 1" select hardwood (sanded & varnished)
  • Side Sills: 2" x 6"
  • Cross Bolsters: 1-1/4" hardwood
  • Reinforcements: Steel tie rod across each end
  • Casters: One swivel caster on each end (tilt-type)
  • Wheel Options:
    • 12" x 2-1/2" load wheels with 6" x 2" end casters
    • 16" x 3" load wheels with 8" x 2" end casters
  • Axle Diameter: 1"
  • Platform Heights:
    • 16-1/4" (with 12" and 6" wheels)
    • 18-1/4" (with 16" and 8" wheels)
  • Features: Roller bearings, lube fittings, heavy-duty stake sockets
  • Available Superstructure Styles: L and M
  • Note: Surcharges may apply



Model No. Model No. Platform Size Wheels Capacity Weight Price Qty
63394 PW820-M-12M2448 24" x 48" Metal 12" x 2-1/2 and 6" x 2" 2200 lbs. 180 lbs.
$2,321.00
$1,408.00
63445 PW820-M-12R2448 24" x 48" Moldon Rubber 12" x 2-1/2" and 6" x 2" 2200 lbs. 180 lbs.
$2,415.00
$1,226.00
63619 PW820-M-12P2448 24" x 48" Plastex 12" x 2-1/2" and 6" x 2" 2200 lbs. 180 lbs.
$2,175.00
$1,246.00
63859 PW820-M-12M3048 30" x 48" Metal 12" x 2-1/2" and 6" x 2" 2200 lbs. 215 lbs.
$2,350.00
$1,369.00
64010 PW820-M-12R3048 30" x 48" Moldon Rubber 12" x 2-1/2" and 6" x 2" 2200 lbs. 215 lbs.
$2,444.00
$1,165.00
65479 PW820-M-12R3672 36" x 72" Moldon Rubber 12" x 2-1/2" and 6" x 2" 2200 lbs. 255 lbs.
$2,626.00
$1,327.00
65496 PW820-M-12M3672 36" x 72" Metal 12" x 2-1/2" and 6" x 2" 2200 lbs. 255 lbs.
$2,531.00
$1,516.00
65547 PW820-M-12P3048 30" x 48" Plastex 12" x 2-1/2" and 6" x 2" 2200 lbs. 215 lbs.
$2,204.00
$1,197.00
65591 PW820-M-12M3060 30" x 60" Metal 12" x 2-1/2" and 6" x 2" 2200 lbs. 225 lbs.
$2,383.00
$1,375.00
65595 PW820-M-12R3060 30" x 60" Moldon Rubber 12" x 2-1/2" and 6" x 2" 2200 lbs. 225 lbs.
$2,478.00
$1,249.00
65603 PW820-M-12P3672 36" x 72" Plastex 12" x 2-1/2" and 6" x 2" 2200 lbs. 255 lbs.
$2,386.00
$1,388.00
65605 PW820-M-16M2448 24" x 48" Metal 16" x 3" and 8" x 2" 3000 lbs. 215 lbs.
$2,732.00
$1,619.00
65662 PW820-M-12P3660 36" x 60" Plastex 12" x 2-1/2" and 6" x 2" 2200 lbs. 240 lbs.
$2,301.00
$1,329.00
65664 PW820-M-12R3660 36" x 60" Moldon Rubber 12" x 2-1/2" and 6" x 2" 2200 lbs. 240 lbs.
$2,541.00
$1,293.00
65675 PW820-M-12P3060 30" x 60" Plastex 12" x 2-1/2" and 6" x 2" 2200 lbs. 225 lbs.
$2,237.00
$1,275.00
65684 PW820-M-12M3660 36" x 60" Metal 12" x 2-1/2" and 6" x 2" 2200 lbs. 240 lbs.
$2,447.00
$1,425.00
66376 PW820-M-16M3060 30" x 60" Metal 16" x 3" and 8" x 2" 3000 lbs. 245 lbs.
$2,795.00
$1,665.00
66455 PW820-M-16P3048 30" x 48" Plastex 16" x 3" and 8" x 2" 3000 lbs. 235 lbs.
$2,535.00
$1,487.00
66673 PW820-M-16R3048 30" x 48" Moldon Rubber 16" x 3" and 8" x 2" 3000 lbs. 235 lbs.
$2,829.00
$1,685.00
66690 PW820-M-16M3048 30" x 48" Metal 16" x 3" and 8" x 2" 3000 lbs. 235 lbs.
$2,762.00
$1,639.00
66779 PW820-M-16P2448 24" x 48" Plastex 16" x 3" and 8" x 2" 3000 lbs. 215 lbs.
$2,506.00
$1,468.00
66950 PW820-M-16R2448 24" x 48" Moldon Rubber 16" x 3" and 8" x 2" 3000 lbs. 215 lbs.
$2,800.00
$1,662.00
67143 PW820-M-16M3660 36" x 60" Metal 16" x 3" and 8" x 2" 3000 lbs. 260 lbs.
$2,859.00
$1,704.00
67283 PW820-M-16P3060 30" x 60" Plastex 16" x 3" and 8" x 2" 3000 lbs. 245 lbs.
$2,568.00
$1,559.00
67420 PW820-M-16R3672 36" x 72" Moldon Rubber 16" x 3" and 8" x 2" 3000 lbs. 275 lbs.
$3,010.00
$1,545.00
67564 PW820-M-16R3060 30" x 60" Moldon Rubber 16" x 3" and 8" x 2" 3000 lbs. 245 lbs.
$2,862.00
$1,710.00
67800 PW820-M-16M3672 36" x 72" Metal 16" x 3" and 8" x 2" 3000 lbs. 275 lbs.
$2,943.00
$1,758.00
68068 PW820-M-16P3660 36" x 60" Plastex 16" x 3" and 8" x 2" 3000 lbs. 260 lbs.
$2,632.00
$1,329.00
68295 PW820-M-16R3660 36" x 60" Moldon Rubber 16" x 3" and 8" x 2" 3000 lbs. 260 lbs.
$2,926.00
$1,747.00
68635 PW820-M-16P3672 36" x 72" Plastex 16" x 3" and 8" x 2" 3000 lbs. 275 lbs.
$2,716.00
$1,659.00
!
