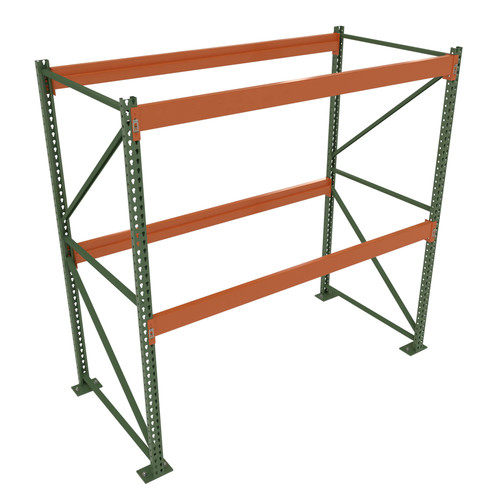

Teardrop Storage Rack - Starter Unit without Deck - 96 in x 48 in x 10 ft

This product may be eligible for a reduced or free freight shipment depending on order size.

FOB: Oregon Warehouse

The Teardrop Storage Rack Starter Unit is engineered to maximize warehouse efficiency and adaptability. Constructed of high-grade steel with a robust design, this storage rack is compatible with most teardrop rack systems on the market, ensuring seamless integration into your existing setup.

This starter unit features a 2" vertical adjustment step beam design, allowing for precise customization of beam heights to meet your unique storage needs. It accommodates crossbars, wood stringers, or wire decking and comes equipped with removable safety load clips at each beam end for enhanced safety and convenience.

With upright frames rated for 42" maximum vertical beam spacing, this rack is perfect for heavy-duty applications, providing reliable support for your most demanding storage requirements.

• Dimensions: 96" x 48" x 10'
• Material: High-grade steel construction
• Compatibility: Interchangeable with most teardrop rack designs
• Beam Adjustment: 2" vertical step adjustment
• Accessories: Accommodates crossbars, wood stringers, or wire decking
• Safety Features: Removable safety load clips on beam ends
• Note: Upright frame capacities are based on 42" maximum vertical beam spacing.

How to select pallet rack:

1. Frame Capacity: Add total weight of all pallets for each bay (exclude pallets on floor).
2. Height: Measure all verticals including height of pallet, pallet load, beam height, add 4" clearance between top of load and bottom of beam above. Top beam should be a minimum of 6" less than maximum lifting height of your forklift.
3. Depth: Pallet should overhang frame by 3" front and back. (48" pallet, use 42" deep frame). Deduct 6" from pallet depth. Pallets need to be in good condition.
4. Width: Measure width of pallet, add a minimum of 3" pallet to frame clearance and 4" between pallets to determine correct beam length. Each pair of beams must support weight of pallets per level. Add-on sections require only one additional frame and required number of beams.
5. Add 6" in width to get the overall width of a starter unit.

Not sure what to do? Ask for our Systems Design Department. We can customize and design any storage rack, push back, flow rack, drive in rack, pick module, mezzanine or conveyor system. 1-800-338-1382.
