Teardrop 3 x 96 Storage Rack Beams

FOB: Oregon Warehouse

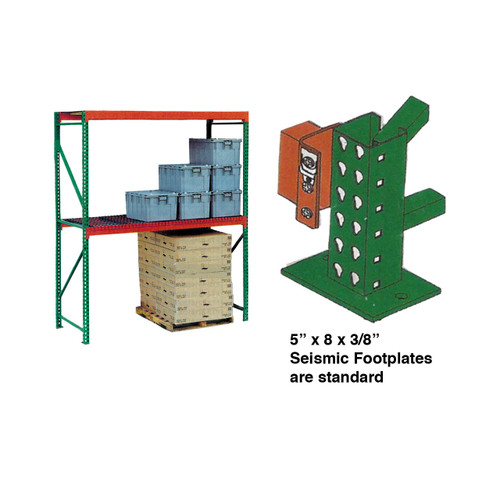

Maximize your storage with Teardrop 3 x 96 Storage Rack Beams from Material Flow. These orange beams, stocked for quick shipment, are constructed from high-grade steel with a 2600 lb capacity per pair. Designed to interchange with most teardrop systems, they feature a 2-inch vertical adjustment for easy customization. The removable safety load clips ensure secure placement. Perfect for crossbars, wood stringers, or wire decking. Enjoy volume discounts starting at 1,000 units. Combine beams and frames for maximum savings!

• Dimensions: 3" H x 96" L
• Capacity Per Pair: 2600 lbs.
• Weight: 21 lbs.
• Color: Orange
• Surcharges May Apply

Volume Discounts:

• 1,000 - 2,999 units: 5% off
• 3,000 - 4,999 units: 7% off
• 5,000 - 9,999 units: 10% off
• 10,000+ units: Inquire

• Determine Frame Capacity:
  Calculate the total weight of all pallets in each bay (excluding floor pallets).

• Measure Height:
  Include the pallet, load, and beam height. Add 4" clearance above the load. The top beam should be at least 6" below the maximum lift height of your forklift.

• Select Depth:
  Choose a frame depth that allows a 3" overhang for pallets. For 48" pallets, use a 42" deep frame. Ensure pallets are in good condition.

• Calculate Width:
  Add 3" for pallet-to-frame clearance and 4" between pallets. Ensure each beam pair supports the pallet weight per level. Add-on sections need only one additional frame and beams.
