STP7000 Series Heavy Duty Drop Forged Rigid Casters
Write a Review
Material Flow
STP7000 Series Heavy Duty Drop Forged Rigid Casters
- SKU:
- STP7000 Series Heavy Duty Drop Forged Rigid Casters
- UPC:
- Condition:
- New
FOB: Oregon Warehouse
Lead time: 2-5 days
Unmatched strength for the toughest hauls. The STP7000 Series Heavy Duty Drop Forged Rigid Casters from Material Flow are engineered to handle punishing industrial applications with ease. Built with a 3/8" AISI 1045 drop forged steel top plate and heavy-duty welded steel frame, these casters are ideal for cargo containers, freight terminal trucks, and large platform carts.
Designed to resist deformation under stress, the 15/64" machine-welded legs are paired with a 1/2" diameter axle and 3/4" bolt-and-nut kingpin for rock-solid stability. The fork spacing of 2-1/2" allows for a durable fit, and although the image shows a swivel caster, this model is rigid—built to stay the course in high-impact environments.
-
Finish: Bright zinc plating
-
Top Plate: 3/8" AISI 1045 drop forged steel
-
Caster Type: Rigid (non-swivel)
-
Fork Spacing: 2-1/2"
-
Legs: 15/64" machine-welded steel, formed to resist bending
-
Kingpin: 3/4" diameter bolt and nut
-
Axle: 1/2" diameter with lock nut
-
Grease Fittings: Zerk fitting in swivel section (frame design shared with swivel model)
-
Applications:
-
Cargo containers
-
Freight terminal trucks
-
Material handling carts
-
Large platform trucks
-
-

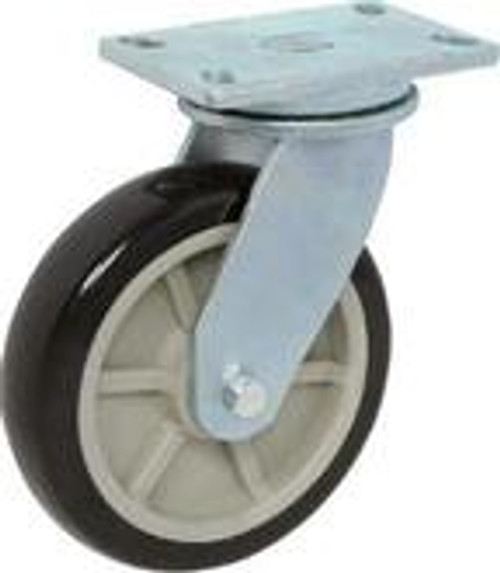

Note: Swivel caster shown; product is rigid
-
Additional Info: Surcharges may apply
| Model No. | Model No. | Fastening Size | Fastening Type | Overall Height | Wheel Diameter | Wheel Type | Wheel Bearing | Load Capacity | Swivel Radius | Tread Width | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10712 | STP7060R-01-PAL | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Polyurethane / Aluminum | Roller | 1000 lbs. | 4-3/4" | 2" |
$35.07
|
|
| 10992 | STP7060R-01-PALC | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Crown Polyurethane / AL | Precision | 1000 lbs. | 4-3/4" | 2" |
$42.07
|
|
| 11409 | STP7060R-01-PCI | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Polyurethane / Cast Iron | Roller | 1200 lbs. | 4-3/4" | 2" |
$38.07
|
|
| 11741 | STP7060R-01-PCIS-PBB | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Polyurethane / Cast Iron | Precision | 1250 lbs. | 4-3/4" | 2" |
$65.07
|
|
| 11829 | STP7060R-01-NGF | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Nylon Glass-Filled | Roller | 1200 lbs. | 4-3/4" | 2" |
$33.07
|
|
| 11989 | STP7060R-01-PRX-PBB | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Pro-Tech Xtra | Precision | 1000 lbs. | 4-3/4" | 2" |
$32.07
|
|
| 12188 | STP7060R-01-PHN | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Phenolic | Roller | 1200 lbs. | 4-3/4" | 2" |
$30.07
|
|
| 12417 | STP7060R-01-STL | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Steel | Roller | 1200 lbs. | 4-3/4" | 2" |
$35.07
|
|
| 12674 | STP7060R-01-SDI | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Ductile Iron | Roller | 1500 lbs. | 4-3/4" | 2" |
$41.07
|
|
| 13018 | STP7060R-01-PLX | 4-1/2" x 6-1/4" | Top Plate | 7-1/2" | 6" | Plex Solid Polyurethane | Roller | 900 lbs. | 4-3/4" | 2" |
$46.07
|
|
| 13150 | STP7080R-01-NGF | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Nylon Glass-Filled | Roller | 1400 lbs. | 6-1/4" | 2" |
$38.07
|
|
| 13200 | STP7080R-01-PCI | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Polyurethane / Cast Iron | Roller | 1400 lbs. | 6-1/4" | 2" |
$46.07
|
|
| 13373 | STP7080R-01-PAL | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Polyurethane / Aluminum | Roller | 1200 lbs. | 6-1/4" | 2" |
$41.07
|
|
| 13704 | STP7080R-01-PCIS-PBB | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Polyurethane / Cast Iron | Precision | 1300 lbs. | 6-1/4" | 2" |
$58.07
|
|
| 13775 | STP7080R-01-PALC | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Crown Polyurethane / AL | Precision | 1200 lbs. | 6-1/4" | 2" |
$49.07
|
|
| 13996 | STP7080R-01-SDL | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Ductile Iron | Roller | 1500 lbs. | 6-1/4" | 2" |
$45.07
|
|
| 14095 | STP7080R-01-PHN | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Phenolic | Roller | 1400 lbs. | 6-1/4" | 2" |
$36.07
|
|
| 14337 | STP7080R-01-PLX | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Solid Polyurethane | Roller | 1200 lbs. | 6-1/4" | 2" |
$62.07
|
|
| 14732 | STP7080R-01-PRX-PBB | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Pro-Tech Xtra | Precision | 1200 lbs. | 6-1/4" | 2" |
$30.07
|
|
| 14951 | STP7080R-01-STL | 4-1/2" x 6-1/4" | Top Plate | 10-1/8" | 8" | Steel | Roller | 1400 lbs. | 6-1/4" | 2" |
$45.07
|
