STP6200 Medium Duty Rigid Plate Casters
Write a Review
Material Flow
STP6200 Medium Duty Rigid Plate Casters
- SKU:
- STP6200 Medium Duty Rigid Plate Casters
- UPC:
- Condition:
- New
FOB: Oregon Warehouse
Lead time: 2-5 days

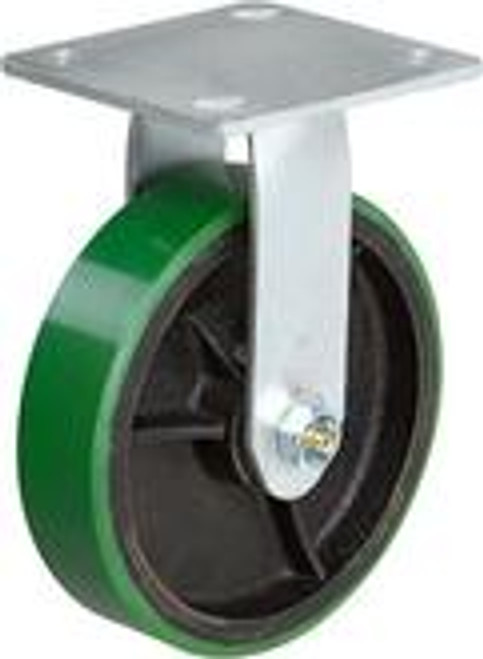

The STP6200 Medium Duty Rigid Plate Caster by Material Flow is engineered for strength and performance. Designed with a welded heavy-gauge steel fork, bright zinc plating for corrosion resistance, and a 1/2" diameter zerk axle, this caster delivers reliable load-bearing support for medium duty applications. Featuring a 2" fork leg spacing and built-in grease hole for smooth operation, it’s a rugged solution for platform trucks, food service equipment, and warehouse carts. Optional top lock brake available—contact Material Flow for customization. Tough, dependable, and built to last.
-
Finish: Bright zinc plating
-
Fork Type: Rigid, welded with heavy-duty gauge steel
-
Fork Leg Spacing: 2"
-
Grease Fittings: Lower raceway cup with grease hole
-
Axle: 1/2" diameter zerk axle with lock nut
-
Brake Option: Top lock brake available (contact Material Flow)
-
Surcharges: May apply
| Model No. | Model No. | Fastening Type | Fastening Size | Overall Height | Wheel Diameter | Wheel Type | Wheel Bearing | Load Capacity | Swivel Radius | Tread Width | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80505 | STP6240R-02-PHN | Top Plate | 4" x 4-1/2" | 5-5/16" | 4" | Phenolic | Roller | 450 lbs. | 3-3/8" | 1-1/2" |
$13.28
|
|
| 80861 | STP6240R-02-PHN-HT | Top Plate | 4" x 4-1/2" | 5-5/16" | 4" | Phenolic | Roller | 450 lbs. | 3-3/8" | 1-1/2" |
$23.28
|
|
| 80874 | STP6250R-02-PHN | Top Plate | 4" x 4-1/2" | 6-5/16" | 5" | Phenolic | Roller | 500 lbs. | 4-1/8" | 1-1/2" |
$14.59
|
|
| 81040 | STP6260R-02-PRO | Top Plate | 4" x 4-1/2" | 7-1/2" | 6" | Pro-Tech Polyurethane | Roller | 550 lbs. | 4-5/8" | 1-1/2" |
$17.48
|
|
| 81286 | STP6250R-02-PRO | Top Plate | 4" x 4-1/2" | 6-5/16" | 5" | Pro-Tech Polyurethane | Roller | 500 lbs. | 4-1/8" | 1-1/2" |
$15.81
|
|
| 81312 | STP6240R-02-PRO | Top Plate | 4" x 4-1/2" | 5-5/16" | 4" | Pro-Tech Polyurethane | Roller | 450 lbs. | 3-3/8" | 1-1/2" |
$14.59
|
|
| 81355 | STP6240R-02-FVR | Top Plate | 4" x 4-1/2" | 5-5/16" | 4" | Fever Hi-Temp | Roller | 400 lbs. | 3-3/8" | 1-1/2" |
$18.79
|
|
| 81445 | STP6260R-02-RCI | Top Plate | 4" x 4-1/2" | 7-1/2" | 6" | Rubber / Cast Iron | Roller | 450 lbs. | 4-5/8" | 1-1/2" |
$16.38
|
|
| 81630 | STP6250R-02-RCI | Top Plate | 4" x 4-1/2" | 6-5/16" | 5" | Rubber / Cast Iron | Roller | 350 lbs. | 4-1/8" | 1-1/2" |
$15.15
|
|
| 81668 | STP6240R-02-RCI | Top Plate | 4" x 4-1/2" | 5-5/16" | 4" | Rubber / Cast Iron | Roller | 250 lbs. | 3-3/8" | 1-1/2" |
$14.07
|
|
| 81708 | STP6240R-02-PCI | Top Plate | 4" x 4-1/2" | 5-5/16" | 4" | Polyurethane / Cast Iron | Roller | 450 lbs. | 3-3/8" | 1-1/2" |
$16.00
|
|
| 81850 | STP6260R-02-PCI | Top Plate | 4" x 4-1/2" | 7-1/2" | 6" | Polyurethane / Cast Iron | Roller | 550 lbs. | 4-5/8" | 1-1/2" |
$20.53
|
|
| 81972 | STP6250R-02-PCI | Top Plate | 4" x 4-1/2" | 6-5/16" | 5" | Polyurethane / Cast Iron | Roller | 500 lbs. | 4-1/8" | 1-1/2" |
$18.57
|
|
| 82216 | STP6260R-02-PHN | Top Plate | 4" x 4-1/2" | 7-1/2" | 6" | Phenolic | Roller | 500 lbs. | 4-5/8" | 1-1/2" |
$16.42
|
