Steel Dock Boards- Model TFL-25,000 lbs. Capacity
Write a Review

Bluff Manufacturing
Steel Dock Boards- Model TFL-25,000 lbs. Capacity
- SKU:
- Steel Dock Boards- Model TFL-25,000 lbs. Capacity
- UPC:
FOB: Midwest Warehouse

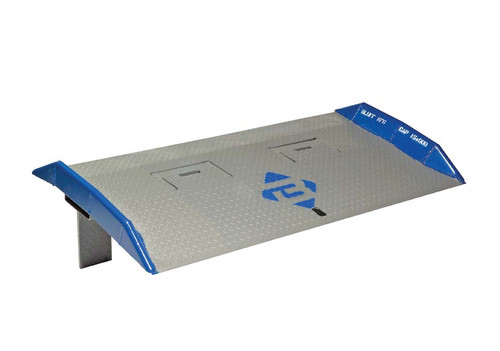

Like the standard "T" board this dock board is put into the most demanding situations. Placement pins are replaced by lock legs but all other model "T" features remain. Fold down lift loops and the double bend design allow for maximum coverage no matter what the truck. Standard capacities of 15,000 lbs. and 20,000 lbs. carry the ANSI certification. Higher capacities available.
All steel construction and our heavy-duty design makes this board "the choice" for the busy dock where high traffic cycles, high capacities and multiple shifts demand the maximum from equipment. Lock pins in lieu of legs allow for exact placement of the board between the dock and truck. All welded construction makes for a "maximum effort" product.
Model No. | Model No. | Height Up 14% Grade | Height Up 19% Grade | Width | Length | Weight | Price | Qty |
---|---|---|---|---|---|---|---|---|
76435 | 25TFL6072 | 8 1/2" | 11" | 60" | 72" | 913 lbs. |
$3,675.99
|
|
76611 | 25TFL7272 | 8 1/2" | 11" | 72" | 72" | 1,065 lbs. |
$4,296.00
$4,197.00
|
|
76954 | 25TFL6048 | 5" | 7" | 60" | 48" | 668 lbs. |
$2,893.99
|
|
76978 | 25TFL8472 | 8 1/2" | 11" | 84" | 72" | 1,217 lbs. |
$5,303.00
$5,137.00
|
|
77086 | 25TFL7296 | 12" | 15" | 72" | 96" | 1,354 lbs. |
$5,320.00
$5,158.00
|
|
77182 | 25TFL7260 | 7" | 9" | 72" | 60" | 921 lbs. |
$3,787.00
$3,786.99
|
|
77488 | 25TFL8460 | 7" | 9" | 84" | 60" | 1,051 lbs. |
$4,432.00
$4,378.00
|
|
77584 | 25TFL7248 | 5" | 7" | 72" | 48" | 777 lbs. |
$3,370.99
|
|
77635 | 25TFL7284 | 10" | 13" | 72" | 84" | 1,209 lbs. |
$4,805.00
$4,787.00
|
|
77892 | 25TFL8484 | 10" | 13" | 84" | 84" | 1,382 lbs. |
$6,051.00
$5,893.00
|
|
78011 | 25TFL8448 | 5" | 7" | 84" | 48" | 885 lbs. |
$3,616.99
|
