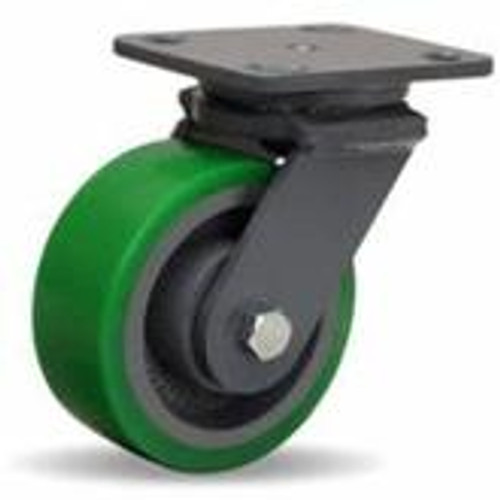

Series WH Workhorse Casters - 5 inch Diameter
Manufacturer: Hamilton Caster
MSRP:
Was:
Now:
$47.07
(You save
)
(No reviews yet)
Write a Review
Write a Review
Hamilton Caster
Series WH Workhorse Casters - 5 inch Diameter
- SKU:
- Series WH Workhorse Casters - 5 inch Diameter
- UPC:
FOB: Midwest Warehouse
In stock
- Swivel Construction — 1/4" thick drop forged steel mounting plate; 1/4" x 2" plate steel legs robotically welded inside and outside to forged steel horn base.
- Kingpin — Sturdy 3/4" diameter integrally forged with mounting plate, guaranteed for life, and threaded for 3/4" lock nut.
- Main Load Bearing — CNC-machined 2-9/16" diameter raceway; 3/8" diameter hardened and polished steel balls.
- Secondary Load Bearing — 3/4" precision tapered thrust bearing counteracts radial thrust.
- Lubrication Fittings — Ball-check type in swivel assembly and in wheel hubs with tapered or straight roller bearings.
- Swivel top plate: 4" x 5", slotted bolt holes.
- Rigid top plate: 4" x 4-1/2", slotted bolt holes.
Featured Wheel Bearings:
Precision Ball Bearings - double sealed, maintenance free, superior rollability aids manual applications, not recommended if shock loading is prevalent.
Precision Tapered Roller Bearings - best for most severe heavy duty and power-towed applications.
Straight Roller Bearing - traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent.
| Model No. | Model No. | Description | Diameter | Face | Type | Capacity | Total Height | Swivel Offset | Weight | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 75812 | S-WH-5DB |
Swivel with Precision Ball Bearing |
5" | 2" | Duralast | 1050 lbs. | 6-1/2" | 1-7/8" | 11 lbs. |
$265.40
$139.07
|
|
| 76936 | R-WH-5DB |
Rigid with Precision Ball Bearing |
5" | 2" | Duralast | 1050 lbs. | 6-1/2" | -- | 8 lbs. |
$149.40
$79.07
|
|
| 76547 | S-WH-5DT |
Swivel with Precision Tapered Roller Bearing |
5" | 2" | Duralast | 1050 lbs. | 6-1/2" | 1-7/8" | 11 lbs. |
$310.80
$197.07
|
|
| 76226 | R-WH-5DT |
Rigid with Precision Tapered Roller Bearing |
5" | 2" | Duralast | 1050 lbs. | 6-1/2" | -- | 8 lbs. |
$194.80
$125.07
|
|
| 77290 | S-WH-5DB70 |
Swivel with Precision Ball Bearing |
5" | 2" | Duralast XC | 1360 lbs. | 6-1/2" | 1-7/8" | 11 lbs. |
$298.70
$159.07
|
|
| 76885 | R-WH-5DB70 |
Rigid with Precision Ball Bearing |
5" | 2" | Duralast XC | 1360 lbs. | 6-1/2" | -- | 8 lbs. |
$183.10
$96.07
|
|
| 76385 | S-WH-5FS |
Swivel with Straight Roller Bearing |
5" | 2" | Forged Steel | 1500 lbs. | 6-1/2" | 1-7/8" | 14 lbs. |
$312.50
$195.07
|
|
| 77372 | R-WH-5FS |
Rigid with Straight Roller Bearing |
5" | 2" | Forged Steel | 1500 lbs. | 6-1/2" | -- | 11 lbs. |
$196.60
$135.07
|
|
| 77075 | S-WH-5MB |
Swivel with Precision Ball Bearings |
5" | 2" | Metal | 1300 lbs. | 6-1/2" | 1-7/8" | 12 lbs. |
$231.90
$123.07
|
|
| 76663 | R-WH-5MB |
Rigid with Precision Ball Bearing |
5" | 2" | Metal | 1300 lbs. | 6-1/2" | -- | 9 lbs. |
$121.50
$61.07
|
|
| 77678 | S-WH-5P |
Swivel with Straight Roller Bearing |
5" | 2" | Plastex | 1000 lbs. | 6-1/2" | 1-7/8" | 10 lbs. |
$198.60
$104.07
|
|
| 77099 | R-WH-5P |
Rigid with Straight Roller Bearing |
5" | 2" | Plastex | 1000 lbs. | 6-1/2" | -- | 6 lbs. |
$94.10
$47.07
|
|
| 78111 | S-WH-5SPB |
Swivel with Precision Ball Bearing |
5" | 2" | Poly-Soft | 840 lbs. | 6-1/2" | 1-7/8" | 11 lbs. |
$284.10
$149.07
|
|
| 77489 | R-WH-5SPB |
Rigid with Precision Ball Bearing |
5" | 2" | Poly-Soft | 840 lbs. | 6-1/2" | -- | 8 lbs. |
$168.30
$89.07
|
|
| 77024 | S-WH-5R |
Swivel with Straight Roller Bearing |
5" | 2" | Mold-on Rubber | 350 lbs. | 6-1/2" | 1-7/8" | 11 lbs. |
$239.10
$154.07
|
|
| 77978 | R-WH-5R |
Rigid with Straight Roller Bearing |
5" | 2" | Mold-on Rubber | 350 lbs. | 6-1/2" | -- | 8 lbs. |
$137.30
$87.07
|
!
