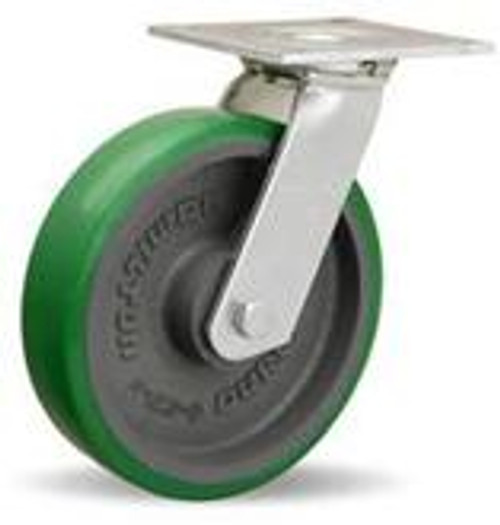

Series MS Medium Service Casters - 8 inch Diameter
- SKU:
- Series MS Medium Service Casters - 8 inch Diameter
- UPC:
FOB: Midwest Warehouse
In stock
- Swivel Construction — Cold forged steel mounting plate and horn base. Legs 1/4" plate steel, formed for increased strength and continuously welded to horn base.
- Kingpin — Permanent rivet type, 5/8" diameter heat treated steel.
- Main and Secondary Load Bearings — Hardened and polished steel balls rotate in two smoothly coined, case hardened raceways.
- Axle — 1/2" diameter bolt with lock nut.
- Lubrication Fittings — In swivel assembly and to roller bearings in most wheels.
- Top plate: 5" x 5-1/2", slotted bolt holes.
Featured Wheel Bearings:
Precision Ball Bearings - double sealed, maintenance free, superior rollability aids manual applications, not recommended if shock loading is prevalent
Straight Roller Bearings - traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent
| Model No. | Model No. | Description | Diameter | Face | Type | Capacity | Total Height | Swivel Offset | Weight | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 23485 | S-MS-8DB | Swivel with Precision Ball Bearing | 8" | 2" | Duralast | 900 lbs. | 9-1/2" | 2-3/8" | 14 lbs. |
$194.10
$101.07
|
|
| 23973 | R-MS-8DB | Rigid with Precision Ball Bearing | 8" | 2" | Duralast | 900 lbs. | 9-1/2" | -- | 13 lbs. |
$173.10
$89.07
|
|
| 24787 | S-MS-8MB | Swivel with Precision Ball Bearing | 8" | 2" | Metal | 900 lbs. | 9-1/2" | 2-3/8" | 13 lbs. |
$155.00
$92.07
|
|
| 23779 | R-MS-8MB | Rigid with Precision Ball Bearing | 8" | 2" | Metal | 900 lbs. | 9-1/2" | -- | 12 lbs. |
$134.10
$68.07
|
|
| 24148 | S-MS-8P | Swivel with Straight Roller Bearing | 8" | 2" | Plastex | 900 lbs. | 9-1/2" | 2-3/8" | 9 lbs. |
$108.10
$57.07
|
|
| 24496 | R-MS-8P | Rigid with Straight Roller Bearing | 8" | 2" | Plastex | 900 lbs. | 9-1/2" | -- | 8 lbs. |
$87.20
$45.07
|
|
| 24864 | S-MS-8SPB | Swivel with Precision Ball Bearing | 8" | 2" | Poly-Soft | 900 lbs. | 9-1/2" | 2-3/8" | 14 lbs. |
$210.40
$109.07
|
|
| 25131 | R-MS-8SPB | Rigid with Precision Ball Bearing | 8" | 2" | Poly-Soft | 900 lbs. | 9-1/2" | -- | 13 lbs. |
$189.60
$99.07
|
|
| 25569 | S-MS-8NF | Swivel with Straight Roller Bearing | 8" | 2" | Poly-Tech | 900 lbs. | 9-1/2" | 2-3/8" | 8 lbs. |
$117.80
$62.07
|
|
| 26366 | R-MS-8NF | Rigid with Straight Roller Bearing | 8" | 2" | Poly-Tech | 900 lbs. | 9-1/2" | -- | 8 lbs. |
$97.60
$49.07
|
|
| 25410 | S-MS-8R | Swivel with Straight Roller Bearing | 8" | 2" | Mold-on Rubber | 500 lbs. | 9-1/2" | 2-3/8" | 13 lbs. |
$142.60
$74.07
|
|
| 25844 | R-MS-8R | Rigid with Straight Roller Bearing | 8" | 2" | Mold-on Rubber | 500 lbs. | 9-1/2" | -- | 12 lbs. |
$121.70
$63.07
|
|
| 26175 | S-MS-8UYB | Swivel with Precision Ball Bearing | 8" | 2" | Unilast | 900 lbs. | 9-1/2" | 2-3/8" | 8 lbs. |
$183.50
$117.07
|
|
| 26449 | R-MS-8UYB | Rigid with Precision Ball Bearing | 8" | 2" | Unilast | 900 lbs. | 9-1/2" | -- | 7 lbs. |
$162.50
$105.07
|
|
| 26788 | S-MS-8TE | Swivel with Straight Roller Bearing | 8" | 2" | Versa-Tech | 500 lbs. | 9-1/2" | 2-3/8" | 8 lbs. |
$117.40
$62.07
|
|
| 27277 | R-MS-8TE | Rigid with Straight Roller Bearing | 8" | 2" | Versa-Tech | 500 lbs. | 9-1/2" | -- | 7 lbs. |
$97.20
$51.07
|
!
