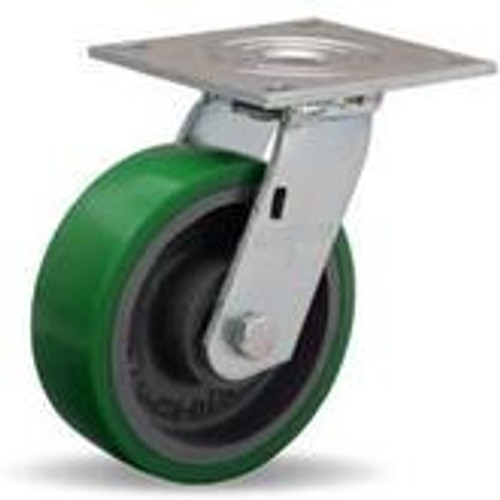

Series MS Medium Service Casters - 6 inch Diameter
Manufacturer: Hamilton Caster
MSRP:
Was:
Now:
$40.07
(You save
)
(No reviews yet)
Write a Review
Write a Review
Hamilton Caster
Series MS Medium Service Casters - 6 inch Diameter
- SKU:
- Series MS Medium Service Casters - 6 inch Diameter
- UPC:
FOB: Midwest Warehouse
In stock
- Swivel Construction — Cold forged steel mounting plate and horn base. Legs 1/4" plate steel, formed for increased strength and continuously welded to horn base.
- Kingpin — Permanent rivet type, 5/8" diameter heat treated steel.
- Main and Secondary Load Bearings — Hardened and polished steel balls rotate in two smoothly coined, case hardened raceways.
- Axle — 1/2" diameter bolt with lock nut.
- Lubrication Fittings — In swivel assembly and to roller bearings in most wheels.
- Top plate: 5" x 5-1/2", slotted bolt holes.
Featured Wheel Bearings:
Precision Ball Bearings - double sealed, maintenance free, superior rollability aids manual applications, not recommended if shock loading is prevalent
Straight Roller Bearings - traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent
| Model No. | Model No. | Description | Diameter | Face | Type | Capacity | Total Height | Swivel Offset | Weight | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 68579 | S-MS-6DB | Swivel w/precision ball bearing | 6" | 2" | Duralast | 900 lbs. | 7-1/2" | 1-3/4" | 11 lbs. |
$159.60
$84.07
|
|
| 68238 | R-MS-6DB | Rigid w/precision ball bearing | 6" | 2" | Duralast | 900 lbs. | 7-1/2" | -- | 10 lbs. |
$141.00
$73.07
|
|
| 67849 | S-MS-6MB | Swivel w/precision ball bearing | 6" | 2" | Metal | 900 lbs. | 7-1/2" | 1-3/4" | 11 lbs. |
$129.60
$66.07
|
|
| 68950 | R-MS-6MB | Rigid w/precision ball bearing | 6" | 2" | Metal | 900 lbs. | 7-1/2" | -- | 10 lbs. |
$114.00
$58.07
|
|
| 68450 | S-MS-6P | Swivel w/straight roller bearing | 6" | 2" | Plastex | 900 lbs. | 7-1/2" | 1-3/4" | 8 lbs. |
$98.50
$51.07
|
|
| 67994 | R-MS-6P | Rigid w/straight roller bearing | 6" | 2" | Plastex | 900 lbs. | 7-1/2" | -- | 7 lbs. |
$78.40
$40.07
|
|
| 68989 | S-MS-6SPB | Swivel w/precision ball bearing | 6" | 2" | Poly-Soft | 900 lbs. | 7-1/2" | 1-3/4" | 11 lbs. |
$177.20
$92.07
|
|
| 68573 | R-MS-6SPB | Rigid w/precision ball bearing | 6" | 2" | Poly-Soft | 900 lbs. | 7-1/2" | -- | 10 lbs. |
$162.10
$85.07
|
|
| 69471 | S-MS-6NF | Swivel w/straight roller bearing | 6" | 2" | Poly-Tech | 900 lbs. | 7-1/2" | 1-3/4" | 7 lbs. |
$108.30
$57.07
|
|
| 68984 | R-MS-6NF | Rigid w/straight roller bearing | 6" | 2" | Poly-Tech | 900 lbs. | 7-1/2" | -- | 6 lbs. |
$89.70
$46.07
|
|
| 69753 | S-MS-6R | Swivel w/straight roller bearing | 6" | 2" | Moldon Rubber | 410 lbs. | 7-1/2" | 1-3/4" | 10 lbs. |
$121.60
$63.07
|
|
| 69123 | R-MS-6R | Rigid w/straight roller bearing | 6" | 2" | Moldon Rubber | 410 lbs. | 7-1/2" | -- | 9 lbs. |
$103.10
$53.07
|
|
| 70000 | S-MS-6UYB | Swivel w/precision ball bearing | 6" | 2" | Unilast | 900 lbs. | 7-1/2" | 1-3/4" | 7 lbs. |
$150.30
$96.07
|
|
| 69317 | R-MS-6UYB | Rigid w/precision ball bearing | 6" | 2" | Unilast | 900 lbs. | 7-1/2" | -- | 6 lbs. |
$132.00
$84.07
|
|
| 70183 | S-MS-6TE | Swivel w/straight roller bearing | 6" | 2" | Versa-Tech | 410 lbs. | 7-1/2" | 1-3/4" | 7 lbs. |
$101.20
$51.07
|
|
| 69537 | R-MS-6TE | Rigid w/straight roller bearing | 6" | 2" | Versa-Tech | 410 lbs. | 7-1/2" | -- | 6 lbs. |
$82.50
$43.07
|
!
