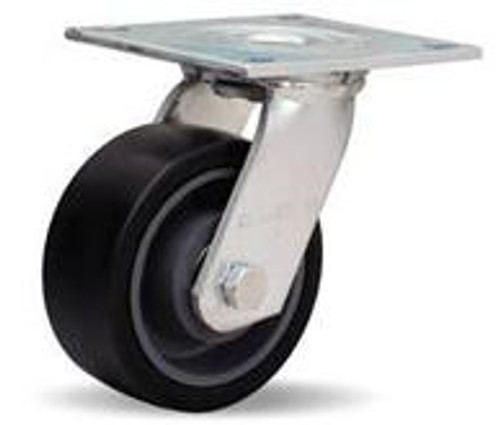

Series MS Medium Service Casters - 5 inch Diameter
Manufacturer: Hamilton Caster
MSRP:
Was:
Now:
$41.07
(You save
)
(No reviews yet)
Write a Review
Write a Review
Hamilton Caster
Series MS Medium Service Casters - 5 inch Diameter
- SKU:
- Series MS Medium Service Casters - 5 inch Diameter
- UPC:
FOB: Midwest Warehouse
In stock
- Swivel Construction — Cold forged steel mounting plate and horn base. Legs 1/4" plate steel, formed for increased strength and continuously welded to horn base.
- Kingpin — Permanent rivet type, 5/8" diameter heat treated steel.
- Main and Secondary Load Bearings — Hardened and polished steel balls rotate in two smoothly coined, case hardened raceways.
- Axle — 1/2" diameter bolt with lock nut.
- Lubrication Fittings — In swivel assembly and to roller bearings in most wheels.
- Top plate: 5" x 5-1/2", slotted bolt holes.
Featured Wheel Bearings:
Precision Ball Bearings - double sealed, maintenance free, superior rollability aids manual applications, not recommended if shock loading is prevalent
Straight Roller Bearings - traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent
| Model No. | Model No. | Description | Diameter | Face | Type | Capacity | Total Height | Swivel Offset | Weight | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 26347 | S-MS-5DB | Swivel with Precision Ball Bearing | 5" | 2" | Duralast | 900 lbs. | 6-1/2" | 1-5/8" | 9 lbs. |
$157.50
$82.07
|
|
| 25368 | R-MS-5DB | Rigid with Precision Ball Bearing | 5" | 2" | Duralast | 900 lbs. | 6-1/2" | -- | 8 lbs. |
$139.20
$74.07
|
|
| 25814 | S-MS-5MB | Swivel with Precision Ball Bearing | 5" | 2" | Metal | 900 lbs. | 6-1/2" | 1-5/8" | 10 lbs. |
$125.60
$64.06
|
|
| 26141 | R-MS-5MB | Rigid with Precision Ball Bearing | 5" | 2" | Metal | 900 lbs. | 6-1/2" | -- | 9 lbs. |
$107.50
$56.07
|
|
| 26413 | S-MS-5P | Swivel with Straight Roller Bearing | 5" | 2" | Plastex | 900 lbs. | 6-1/2" | 1-5/8" | 7 lbs. |
$93.40
$49.07
|
|
| 26760 | R-MS-5P | Rigid with Straight Roller Bearing | 5" | 2" | Plastex | 900 lbs. | 6-1/2" | -- | 6 lbs. |
$75.20
$46.07
|
|
| 27248 | S-MS-5SPB | Swivel with Precision Ball Bearing | 5" | 2" | Poly-Soft | 840 lbs. | 6-1/2" | 1-5/8" | 9 lbs. |
$174.80
$91.07
|
|
| 26556 | R-MS-5SPB | Rigid with Precision Ball Bearing | 5" | 2" | Poly-Soft | 840 lbs. | 6-1/2" | -- | 8 lbs. |
$156.60
$98.07
|
|
| 27107 | S-MS-5NF | Swivel with Straight Roller Bearing | 5" | 2" | Poly-Tech | 900 lbs. | 6-1/2" | 1-5/8" | 7 lbs. |
$103.50
$54.07
|
|
| 27540 | R-MS-5NF | Rigid with Straight Roller Bearing | 5" | 2" | Poly-Tech | 900 lbs. | 6-1/2" | -- | 5 lbs. |
$85.30
$43.07
|
|
| 27822 | S-MS-5R | Swivel with Straight Roller Bearing | 5" | 2" | Mold-on Rubber | 350 lbs. | 6-1/2" | 1-5/8" | 9 lbs. |
$132.10
$68.07
|
|
| 28169 | R-MS-5R | Rigid with Straight Roller Bearing | 5" | 2" | Mold-on Rubber | 350 lbs. | 6-1/2" | -- | 7 lbs. |
$114.00
$58.07
|
|
| 28623 | S-MS-5UYB | Swivel with Precision Ball Bearing | 5" | 2" | Unilast | 900 lbs. | 6-1/2" | 1-5/8" | 7 lbs. |
$140.50
$88.07
|
|
| 27444 | R-MS-5UYB | Rigid with Precision Ball Bearing | 5" | 2" | Unilast | 900 lbs. | 6-1/2" | -- | 6 lbs. |
$122.20
$79.07
|
|
| 27901 | S-MS-5TE | Swivel with Straight Roller Bearing | 5" | 2" | Versa-Tech | 350 lbs. | 6-1/2" | 1-5/8" | 6 lbs. |
$97.20
$59.07
|
|
| 28714 | R-MS-5TE | Rigid with Straight Roller Bearing | 5" | 2" | Versa-Tech | 350 lbs. | 6-1/2" | -- | 5 lbs. |
$78.90
$41.07
|
!
