Series MD Precision Maxi-Duty Casters
Manufacturer: Hamilton Caster
MSRP:
Was:
Now:
$359.07
(You save
)
(No reviews yet)
Write a Review
Write a Review
Hamilton Caster
Series MD Precision Maxi-Duty Casters
- SKU:
- Series MD Precision Maxi-Duty Casters
- UPC:
FOB: Midwest Warehouse
In stock
- Swivel Construction — 5/8" thick drop forged steel mounting plate (rigid plate 1/2" thick); 3/8" x 5" plate steel contoured legs are welded inside and outside to forged steel horn base.
- Kingpin — 1-1/4" diameter integrally forged with mounting plate guaranteed for life, prevents bending or breaking; threaded for 1-1/4" slotted nut secured by roll pin for positive locking.
- Main Load Bearing — Hamilton Precision Integrated HPI thrust bearing with outside diameter of 7-1/2"; raceways hardened to 58-62HRC and ground to surface finish micro inches.
- Axle — 1-1/4" diameter grade 5 hex head with slotted nut and cotter pin.
- Lubrication Fittings — Ball-check type in swivel assembly and in wheel hubs with tapered or straight roller bearings.
- Top plate: 8-1/2" x 8-1/2", bolt hole spacing: 7" x 7", mounting bolt hole: 11/16".
Featured Wheel Bearings:
Precision Tapered Roller Bearings - best for most severe heavy duty and power-towed applications
| Model No. | Model No. | Description | Diameter | Type | Capacity | Total Height | Swivel Offset | Weight | Face | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|

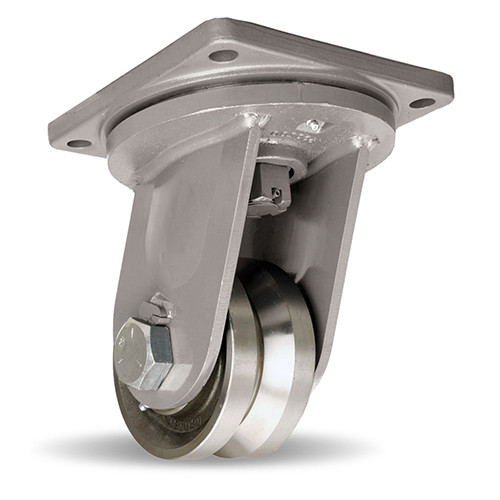

| 65549 | S-MD-63FVT | Swivel with Precision Tapered Roller Bearing | 6" | V-Groove | 10000 lbs. | 10" | 2-1/2" | 48 lbs. | 3" |
$1,179.00
$629.06
|
|
| 67019 | R-MD-63FVT | Rigid with Precision Tapered Roller Bearing | 6" | V-Groove | 10000 lbs. | 10" | -- | 40 lbs. | 3" |
$728.00
$388.07
|
|
| 66888 | S-MD-83FST | Swivel with Precision Tapered Roller Bearing | 8" | Forged Steel | 14000 lbs. | 11" | 2-1/2" | 59 lbs. | 3" |
$1,170.00
$619.06
|
|
| 66640 | R-MD-83FST | Rigid with Precision Tapered Roller Bearing | 8" | Forged Steel | 14000 lbs. | 11" | -- | 43 lbs. | 3" |
$719.50
$359.07
|
|
| 66591 | S-MD-84FST | Swivel with Precision Tapered Roller Bearing | 8" | Forged Steel | 17000 lbs. | 11" | 2-1/2" | 75 lbs. | 4" |
$1,330.00
$685.06
|
|
| 66546 | R-MD-84FST | Rigid with Precision Tapered Roller Bearing | 8" | Forged Steel | 17000 lbs. | 11" | -- | 59 lbs. | 4" |
$867.80
$450.07
|
|
| 66345 | S-MD-84FVT | Swivel with Precision Tapered Roller Bearing | 8" | V-Groove | 15000 lbs. | 11" | 2-1/2" | 70 lbs. | 4" |
$1,411.00
$749.06
|
|
| 67648 | R-MD-84FVT | Rigid with Precision Tapered Roller Bearing | 8" | V-Groove | 15000 lbs. | 11" | -- | 56 lbs. | 4" |
$949.50
$498.07
|
|
| 67481 | S-MD-103FST | Swivel with Precision Tapered Roller Bearing | 10" | Forged Steel | 6500 lbs. | 13" | 3" | 65 lbs. | 3" |
$1,225.00
$655.06
|
|
| 67211 | R-MD-103FST | Rigid with Precision Tapered Roller Bearing | 10" | Forged Steel | 6500 lbs. | 13" | -- | 50 lbs. | 3" |
$804.70
$427.07
|
|
| 67080 | S-MD-104FST | Swivel with Precision Tapered Roller Bearing | 10" | Forged Steel | 18000 lbs. | 13" | 3" | 85 lbs. | 4" |
$1,365.00
$595.06
|
|
| 68234 | R-MD-104FST | Rigid with Precision Tapered Roller Bearing | 10" | Forged Steel | 18000 lbs. | 13" | -- | 70 lbs. | 4" |
$945.00
$469.07
|
|
| 67996 | S-MD-104SYT | Swivel with Precision Tapered Roller Bearing | 10" | Superlast | 5000 lbs. | 13" | 3" | 85 lbs. | 4" |
$1,526.00
$789.06
|
|
| 67724 | R-MD-104SYT | Rigid with Precision Tapered Roller Bearing | 10" | Superlast | 5000 lbs. | 13" | -- | 70 lbs. | 4" |
$1,105.00
$559.06
|
|
| 67315 | S-MD-104FVT | Swivel with Precision Tapered Roller Bearing | 10" | V-Groove | 16000 lbs. | 13" | 3" | 78 lbs. | 4" |
$1,482.00
$769.06
|
|
| 68517 | R-MD-104FVT | Rigid with Precision Tapered Roller Bearing | 10" | V-Groove | 16000 lbs. | 13" | -- | 64 lbs. | 4" |
$1,062.00
$565.06
|
|
| 68197 | S-MD-124SYT | Swivel with Precision Tapered Roller Bearing | 12" | Superlast | 6000 lbs. | 15-1/2" | 3-1/4" | 104 lbs. | 4" |
$1,727.00
$895.06
|
|
| 67816 | R-MD-124SYT | Rigid with Precision Tapered Roller Bearing | 12" | Superlast | 6000 lbs. | 15-1/2" | -- | 94 lbs. | 4" |
$1,267.00
$647.06
|
!
