Series GS General Service Casters - 4 inch Diameter
Manufacturer: Hamilton Caster
MSRP:
Was:
Now:
$45.07
(You save
)
(No reviews yet)
Write a Review
Write a Review
Hamilton Caster
Series GS General Service Casters - 4 inch Diameter
- SKU:
- Series GS General Service Casters - 4 inch Diameter
- UPC:
FOB: Midwest Warehouse
In stock
- Swivel Construction — Cold forged steel mounting plate and horn base. Legs 1/4" plate steel, formed for increased strength and continuously welded to horn base.
- Kingpin — Permanent rivet type, 5/8" diameter heat treated steel.
- Main and Secondary Load Bearings — Hardened and polished steel balls rotate in two smoothly coined, case hardened raceways.
- Axle — 1/2" diameter bolt with lock nut.
- Lubrication Fittings — In swivel assembly and to roller bearings in most wheels.
- Top plate: 4-1/2" x 6-1/4", slotted bolt holes.
Featured Wheel Bearings:
- Precision Ball Bearings - double sealed, maintenance free, superior rollability aids manual applications, not recommended if shock loading is prevalent.
- Straight Roller Bearings - traditional anti-friction bearing, best for manual applications where shock loading (but no side thrust) is prevalent.
| Model No. | Model No. | Description | Diameter | Face | Type | Capacity | Total Height | Swivel Offset | Weight | Price | Qty |
|---|---|---|---|---|---|---|---|---|---|---|---|

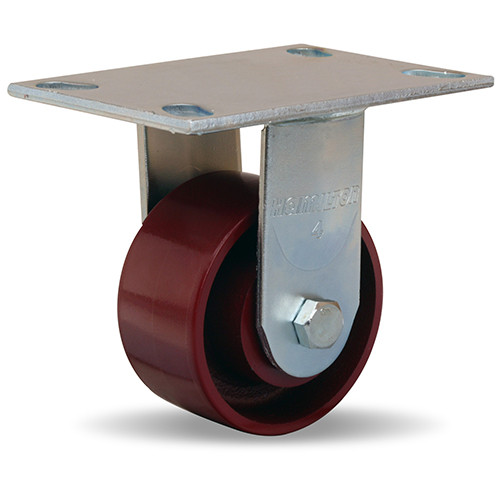

| 80729 | R-GS-4MB | Rigid with Precision Ball Bearing | 4" | 2" | Metal | 900 lbs. | 5-5/8" | -- | 6 lbs. |
$101.90
$61.07
|
|
| 81201 | S-GS-4DB | Swivel with Precision Ball Bearing | 4" | 2" | Duralast | 750 lbs. | 5-5/8" | 1-1/2" | 8 lbs. |
$155.80
$94.07
|
|
| 81203 | S-GS-4P | Swivel with Straight Roller Bearing | 4" | 2" | Plastex | 800 lbs. | 5-5/8" | 1-1/2" | 5 lbs. |
$92.90
$56.07
|
|
| 81356 | R-GS-4SPB | Rigid with Precision Ball Bearing | 4" | 2" | Ergo-Glide | 600 lbs. | 5-5/8" | -- | 7 lbs. |
$150.10
$91.07
|
|
| 81497 | R-GS-4UYB | Rigid with Precision Ball Bearing | 4" | 2" | Unilast | 750 lbs. | 5-5/8" | -- | 5 lbs. |
$110.90
$67.07
|
|
| 81542 | R-GS-4P | Rigid with Straight Roller Bearing | 4" | 2" | Plastex | 800 lbs. | 5-5/8" | -- | 5 lbs. |
$73.80
$45.07
|
|
| 81546 | R-GS-4DB | Rigid with Precision Ball Bearing | 4" | 2" | Duralast | 750 lbs. | 5-5/8" | -- | 7 lbs. |
$135.70
$83.07
|
|
| 81593 | S-GS-4NF | Swivel with Straight Roller Bearing | 4" | 2" | Poly-Tech | 750 lbs. | 5-5/8" | 1-1/2" | 6 lbs. |
$97.60
$55.07
|
|
| 81762 | S-GS-4TE | Swivel with Straight Roller Bearing | 4" | 2" | Versa-Tech | 300 lbs. | 5-5/8" | 1-1/2" | 6 lbs. |
$93.80
$57.07
|
|
| 81860 | S-GS-4MB | Swivel with Precision Ball Bearing | 4" | 2" | Metal | 900 lbs. | 5-5/8" | 1-1/2" | 7 lbs. |
$118.80
$72.07
|
|
| 81898 | R-GS-4NF | Rigid with Straight Roller Bearing | 4" | 2" | Poly-Tech | 750 lbs. | 5-5/8" | -- | 5 lbs. |
$78.40
$47.07
|
|
| 82103 | R-GS-4TE | Rigid with Straight Roller Bearing | 4" | 2" | Versa-Tech | 300 lbs. | 5-5/8" | -- | 5 lbs. |
$75.00
$45.07
|
|
| 82145 | S-GS-4R | Swivel with Straight Roller Bearing | 4" | 2" | Moldon Rubber | 300 lbs. | 5-5/8" | 1-1/2" | 7 lbs. |
$126.90
$77.07
|
|
| 82375 | S-GS-4SPB | Swivel with Precision Ball Bearing | 4" | 2" | Ergo-Glide | 600 lbs. | 5-5/8" | 1-1/2" | 8 lbs. |
$170.10
$108.07
|
|
| 82468 | R-GS-4R | Rigid with Straight Roller Bearing | 4" | 2" | Moldon Rubber | 300 lbs. | 5-5/8" | -- | 7 lbs. |
$108.00
$67.07
|
|
| 82664 | S-GS-4UYB | Swivel with Precision Ball Bearing | 4" | 2" | Unilast | 750 lbs. | 5-5/8" | 1-1/2" | 6 lbs. |
$130.90
$77.07
|
!
