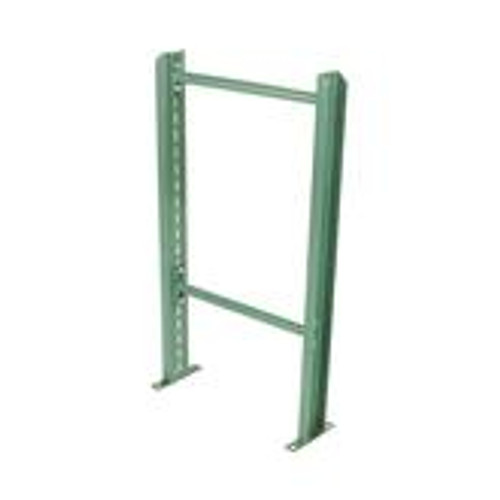

Roach Polytier Supports - 43 to 51 Inches Between Frames

Polytier Supports - 43 to 51 Inches Between Frames

Manufacturer: Roach Conveyors
$149.30
(No reviews yet) Write a Review

FOB: Midwest Warehouse

Specifications:

  • Construction: Upright legs 7 gauge channel construction; attachment "hat" brackets 7 gauge; 2 cross pipes 1" inside diameter.
  • Capacity: 1,250 lbs. per cross member. Capacity per set of legs is 2,500 lbs. (including conveyor and product weight).
  • Knee Braces: One pair per set of legs.
Model No. Model No. Maximum Top of Tier Elevation Between Frames Weight Price Qty
35406 PSM-1-51 20-1/2" 51" 46 lbs.
$149.28
35453 PSM-1-43 20-1/2" 43" 46 lbs.
$149.28
35830 PSM-1-45 20-1/2" 45" 46 lbs.
$149.28
36056 PSM-2-43 26-1/2" 43" 50 lbs.
$153.08
36261 PSM-1-47 20-1/2" 47" 46 lbs.
$149.28
36330 PSM-2-45 26-1/2" 45" 50 lbs.
$153.08
36682 PSM-2-47 26-1/2" 47" 50 lbs.
$153.08
36866 PSM-3-47 32-1/2" 47" 54 lbs.
$159.20
36960 PSM-2-51 26-1/2" 51" 50 lbs.
$153.08
37356 PSM-3-43 32-1/2" 43" 54 lbs.
$159.20
37365 PSM-3-51 32-1/2" 51" 54 lbs.
$159.20
37585 PSM-4-43 38-1/2" 43" 60 lbs.
$161.20
37760 PSM-3-45 32-1/2" 45" 54 lbs.
$159.20
38042 PSM-4-45 38-1/2" 45" 60 lbs.
$161.20
38325 PSM-4-47 38-1/2" 47" 60 lbs.
$161.20
38460 PSM-4-51 38-1/2" 51" 60 lbs.
$161.20
38879 PSM-5-51 44-1/2" 51" 64 lbs.
$164.70
38904 PSM-5-43 44-1/2" 43" 64 lbs.
$164.70
39226 PSM-6-43 50-1/2" 43" 67 lbs.
$172.39
39246 PSM-5-45 44-1/2" 45" 64 lbs.
$164.70
39557 PSM-6-45 50-1/2" 45" 67 lbs.
$172.39
39823 PSM-6-47 50-1/2" 47" 67 lbs.
$172.39
39920 PSM-5-47 44-1/2" 47" 64 lbs.
$164.70
40228 PSM-6-51 50-1/2" 51" 67 lbs.
$172.39
40240 PSM-7-47 56-1/2" 47" 73 lbs.
$179.89
40525 PSM-7-51 56-1/2" 51" 73 lbs.
$179.89
40591 PSM-7-43 56-1/2" 43" 73 lbs.
$179.89
40833 PSM-8-43 62-1/2" 43" 78 lbs.
$187.89
41248 PSM-7-45 56-1/2" 45" 73 lbs.
$179.89
41297 PSM-8-45 62-1/2" 45" 78 lbs.
$187.89
41579 PSM-8-47 62-1/2" 47" 78 lbs.
$187.89
42000 PSM-8-51 62-1/2" 51" 78 lbs.
$187.89
42023 PSM-10-43 74-1/2" 43" 85 lbs.
$203.70
42208 PSM-10-45 74-1/2" 45" 85 lbs.
$203.70
42355 PSM-9-43 68-1/2" 43" 82 lbs.
$195.89
42577 PSM-10-47 74-1/2" 47" 85 lbs.
$203.70
42925 PSM-9-45 68-1/2" 45" 82 lbs.
$195.89
42974 PSM-9-47 68-1/2" 47" 82 lbs.
$195.89
42978 PSM-10-51 74-1/2" 51" 85 lbs.
$203.70
43242 PSM-9-51 68-1/2" 51" 82 lbs.
$195.89
43475 PSM-11-43 80-1/2" 43" 89 lbs.
$211.70
43606 PSM-11-45 80-1/2" 45" 89 lbs.
$211.70
43738 PSM-11-47 80-1/2" 47" 89 lbs.
$211.70
44026 PSM-11-51 80-1/2" 51" 89 lbs.
$211.70
44193 PSM-12-43 86-1/2" 43" 97 lbs.
$219.58
44452 PSM-12-45 86-1/2" 45" 97 lbs.
$219.58
44590 PSM-12-47 86-1/2" 47" 97 lbs.
$219.58
45006 PSM-12-51 86-1/2" 51" 97 lbs.
$219.58
45376 PSM-13-43 92-1/2" 43" 101 lbs.
$227.39
45552 PSM-13-45 92-1/2" 45" 101 lbs.
$227.39
!
