Medium Duty Accordion Wheel Conveyors - 24" Widths - Black Plastic Wheels

Medium Duty Accordion Wheel Conveyors - 24 Inch Widths - Black Plastic Wheels

Manufacturer: Material Flow
$1,390.00
(No reviews yet) Write a Review

FOB: Midwest Warehouse

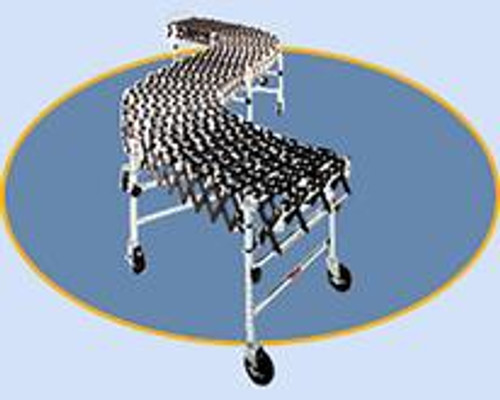

Flexible conveyors conform to the various shapes necessary for ease of product handling with lengths available up to 60 feet.

Specifications:

  • Black plastic wheels
  • 8 skate wheels/axle
  • Axle centers: 5-1/4"
  • Load capacity: 226 lbs. per lineal ft. when fully extended
  • Standard height adjustment: 28" - 44"
  • 1 box stop and 1 set of hook couplers per unit
  • Casters: 5" x 1-1/2" swivel with foot brake

Also available with red nylon or steel wheels, contact Material Flow.

Model No. Model No. Length Contracted / Extended at Minimum Leg Sets Per Unit Weight Price Qty
60507 224-12-P 3' 3" - 12' 10" 4 280 lbs.
$1,804.00
60968 224-16-P 4' 3" - 16' 9" 5 360 lbs.
$2,340.00
61265 224-28-P 7' 1" - 28' 7" 8 610 lbs.
$3,735.00
61303 224-08-P 2' 4" - 8' 11" 3 220 lbs.
$1,390.00
61383 224-20-P 5' 2" - 20' 9" 6 440 lbs.
$2,722.00
61552 224-44-P 10' 11" - 44' 4" 12 900 lbs.
$5,373.00
61662 224-32-P 8' 1" - 32' 6" 9 680 lbs.
$4,152.00
62064 224-24-P 6' 2" - 24' 8" 7 500 lbs.
$3,222.00
62134 224-36-P 9' 0" - 36' 6" 10 750 lbs.
$4,591.00
62142 224-48-P 11' 11" - 48' 3" 13 990 lbs.
$5,940.00
62469 224-52-P 12' 10" - 52' 3" 14 1080 lbs.
$6,286.00
62698 224-40-P 10' 0" - 40' 5" 11 830 lbs.
$4,953.00
62932 224-56-P 13' 10" - 56' 2" 15 1140 lbs.
$6,657.00
63490 224-60-P 14' 9" - 60' 1" 16 1210 lbs.
$7,078.00
!
